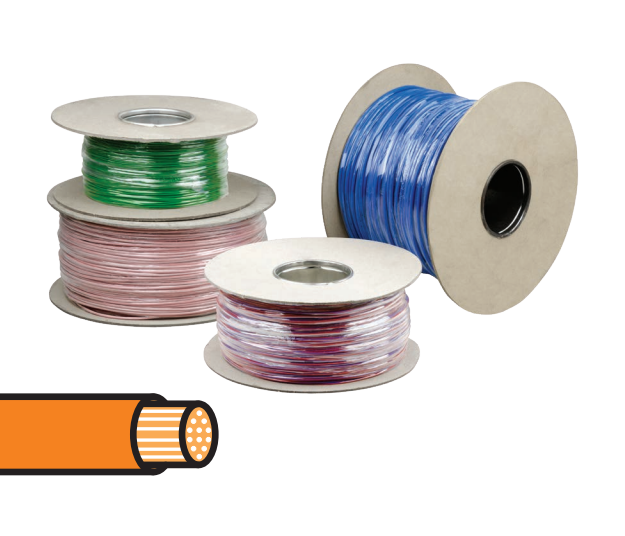

0.5mm² Orange Thin Wall Cable
0.5mm² Orange Thin Wall Cable
Regular price
$61.52 AUD
Regular price
Sale price
$61.52 AUD
Unit price
per
Couldn't load pickup availability
Wires with Trace Colours are only available in 500m rolls
• Lead free PVC insulation.
• Superior heat dissipation.
• Smaller & lighter harnesses.
• More strands of smaller diameter copper compared to traditional cables.
• Large range of colour and trace combinations.
• Made in Europe
| Conductor | Annealed Electrolytic Copper |
| Insulation | Lead Free PVC |
| Max Voltage | 600V |
| Approvals | DIN72551, ISO 6772-4 |
| Operating Temperature | -40°C to 105°C |
| TW050 | TW100 | TW200 | TW450 | TW600 | |
| Nominal Area (mm²) | 0.5 | 1.0 | 2.0 | 4.5 | 6.0 |
| Nominal Current Rating (A) | 11 | 16.5 | 25 | 42 | 50 |
| Strand Count | 16 | 32 | 28 | 65 | 85 |
| Strand Diameter (mm) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Nominal O.D. (mm) | 1.5 | 2.0 | 2.6 | 3.9 | 4.2 |
