Brighton Auto Electric

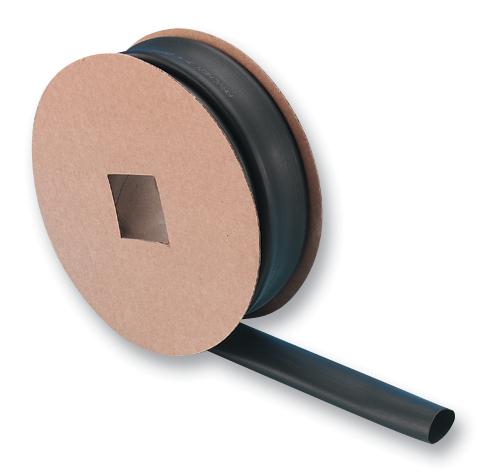

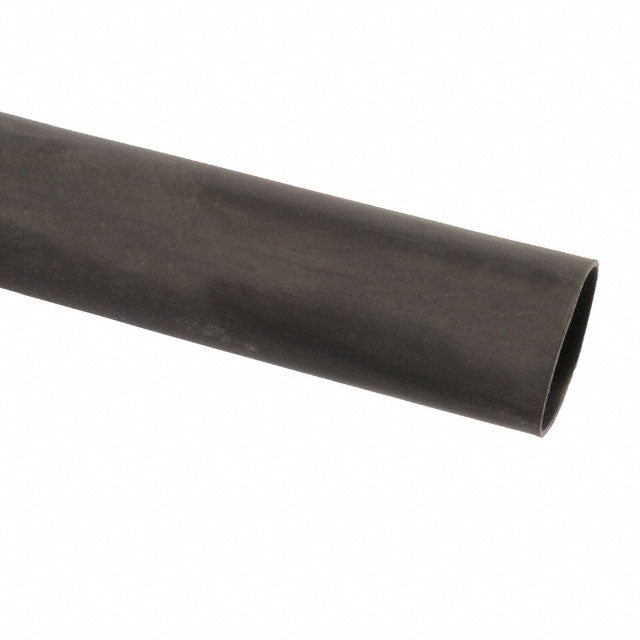

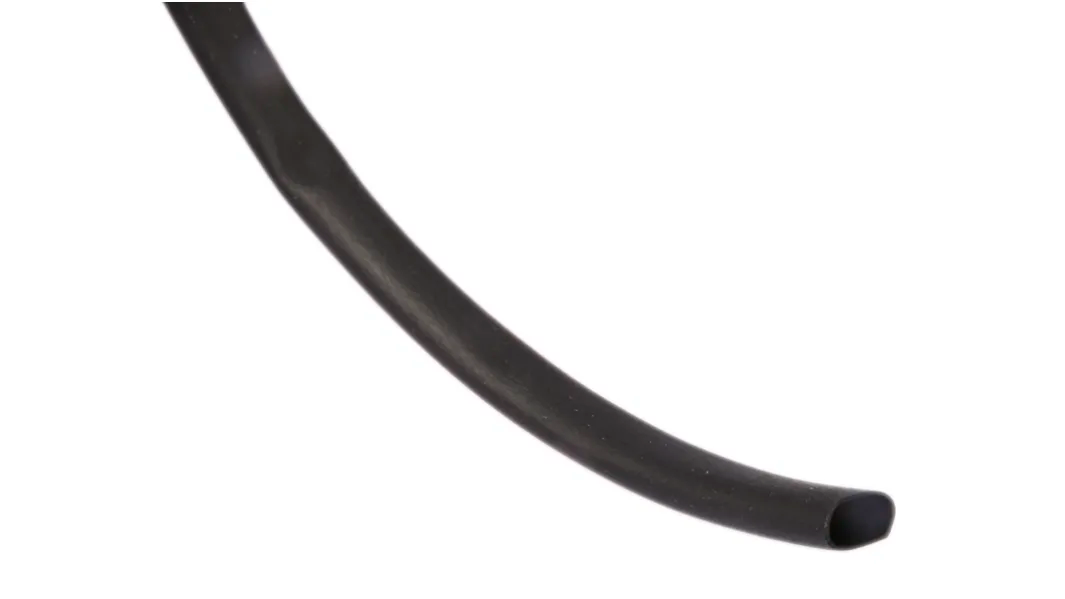

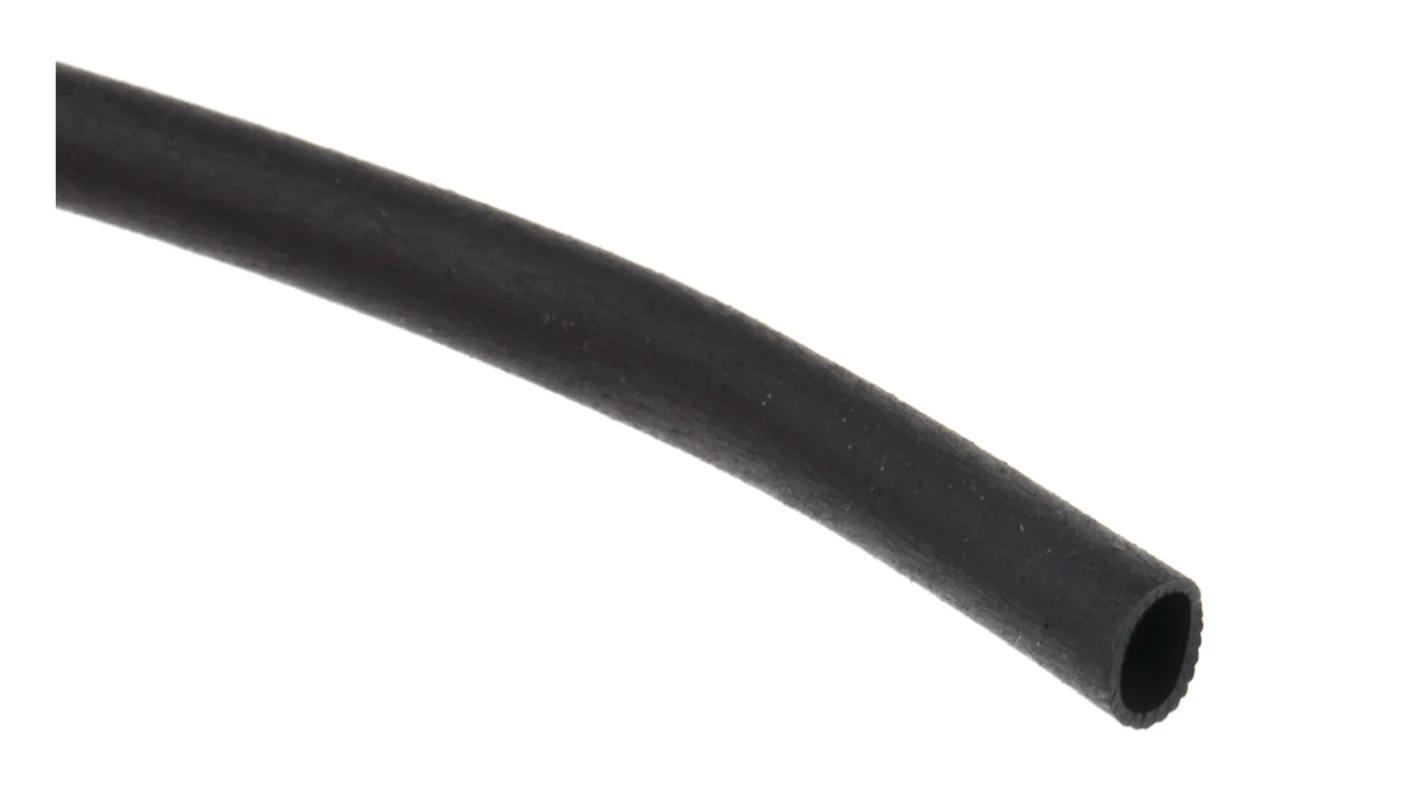

2:1 Diesel Resistant Heat Shrink
2:1 Diesel Resistant Heat Shrink
Regular price
$18.22 AUD
Regular price
Sale price
$18.22 AUD
Unit price
/
per
Couldn't load pickup availability
- Resistance to chemicals, diesel fuels, hydraulic fluids and lubricating oils.
- 2:1 shrink ratio covers wide range of applications.
- 1.2m lengths & rolls available.
- Flame retarding and self extinguishing.
- Dielectric strength 15kV/mm.
- Broad operating temperature range -75°C to 150°C.
- Meets AMS-DTL-23053/16.
Sold in 1.2m lengths, or by the roll, roll lengths vary by size, and can be found in the table below.
| ⌀ (in) | Recovered ⌀ (in) | ⌀ (mm) | Recovered ⌀ (mm) | Roll Length |
| 1/8 | 1/16 | 3.2 | 1.6 | 200m |
| 3/16 | 3/32 | 4.8 | 2.4 | 100m |
| 1/4 | 1/8 | 6.4 | 3.2 | 100m |
| 3/8 | 3/16 | 9.5 | 4.75 | 50m |
| 1/2 | 1/4 | 12.7 | 6.35 | 25m |
| 3/4 | 3/8 | 19 | 9.5 | 25m |
| Colour | Black |
| Shrink Ratio | 2:1 (50%) |
| Flammability | EL224 VW1 |
| Dielectric Strength | >15kV/mm |
| Operating Temp | -75°c - 150°C |
