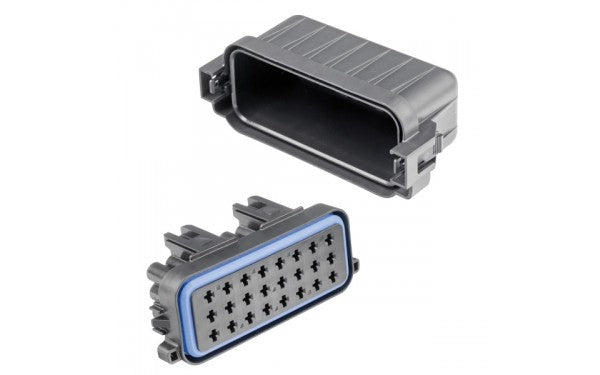

24 Position Fuse and Relay Enclosure Kit

Kit does not include fuses or relays.

Features:

• Kits supplied with all required components including contacts, seals, mount, cover and housing.
• Ideal for conveniently and securely networking multiple fuses, relays and circuit breakers.
• Multiple Contact Point (MCP) contacts confirm component retention and provide a reliable connection even in high vibration environments.
• Heavy duty thermoplastic housings designed to withstand severe vibration and mechanical shock from harsh environments.
• Environmentally sealed – IP67, when installed to manufacturer's specifications.

Specifications:

• Cover: Thermoplastic
• Body: Thermoplastic
• Seal: Silicone Rubber
• Terminals: Tin-plated Copper Alloy
• Operating Temp: -40°C to 80°C
• IP Rating: IP67

Details:

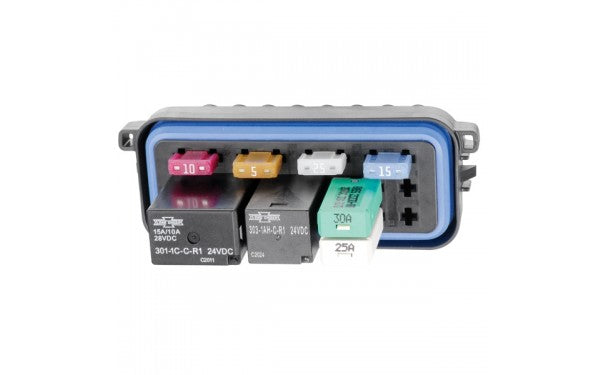

Suits micro relays, and mini fuses.

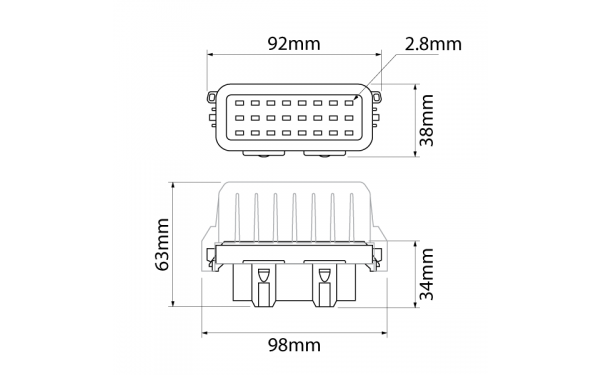

24x 2.8mm cavities

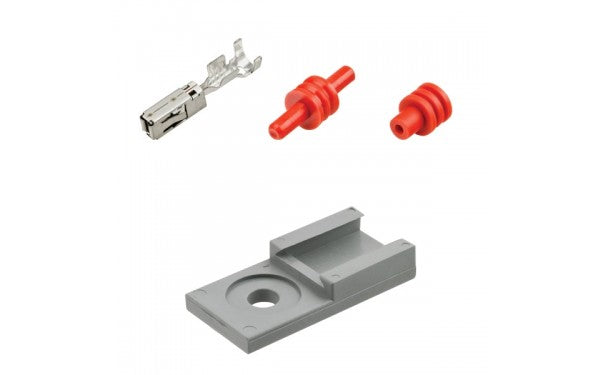

Kit Contents:

• 1x Housing (2318967-1)
• 1x Cover (2318957-2)
• 24x Seals (WS1007)
• 6x Cavity Plugs (WS1008)
• 24x Terminals (1241397-1)
• 2x Mounts (1011-026-0205)
