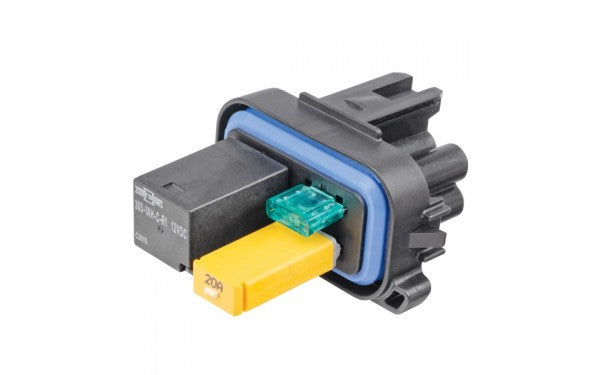

8 Position Fuse and Relay Enclosure Kit

Kit does not include fuses or relays.

Features:

• Kits supplied with all required components including contacts, seals, mount, cover and housing.
• Ideal for conveniently and securely networking multiple fuses, relays and circuit breakers.
• Multiple Contact Point (MCP) contacts confirm component retention and provide a reliable connection even in high vibration environments.
• Heavy duty thermoplastic housings designed to withstand severe vibration and mechanical shock from harsh environments.
• Environmentally sealed – IP67, when installed to manufacturer's specifications.

Specifications:

• Cover: Thermoplastic
• Body: Thermoplastic
• Seal: Silicone Rubber
• Terminals: Tin-plated Copper Alloy
• Operating Temp: -40°C to 80°C
• IP Rating: IP67

Details:

Suits micro relays, and mini fuses.

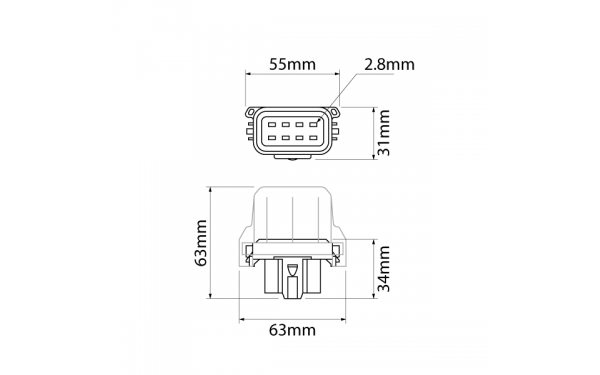

8x 2.8mm cavities

Kit Contents:

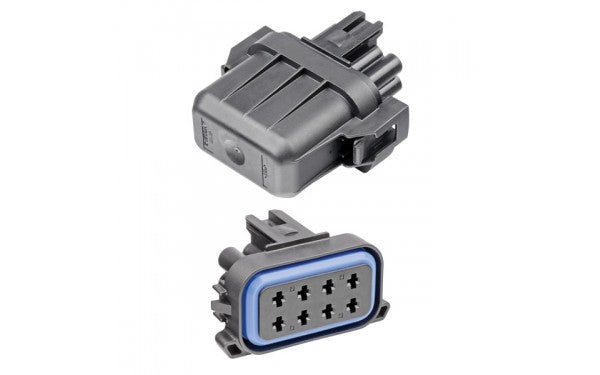

• 1x Housing (2319023-1)
• 1x Cover (2319021-2)

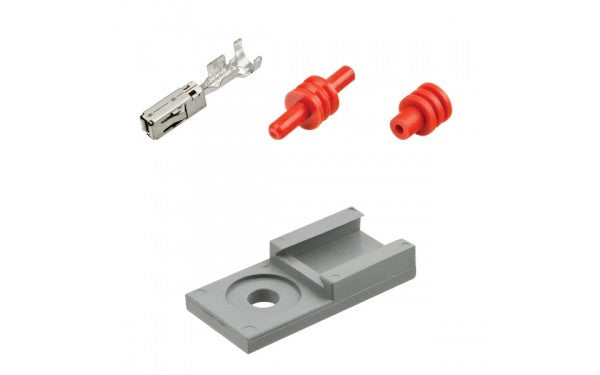

• 8x Seals (WS1007)
• 2x Cavity Plugs (WS1008)
• 8x Terminals (1241397-1)
• 1x Mount (1011-026-0205)
