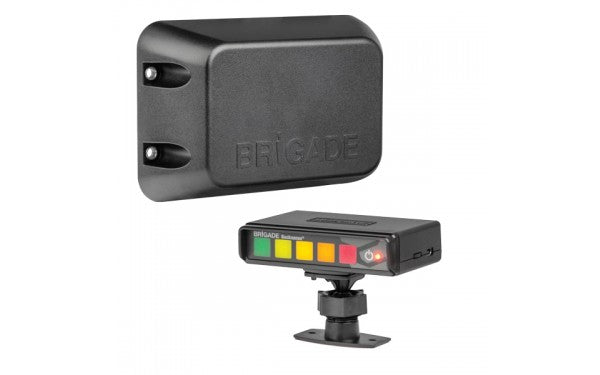

Backsense Radar Sensor Kit

• Detects up to 16 moving and stationary objects.
• High frequency continuous wave provides increased reliability & low false alarm rates.
• Effective through non-metallic surfaces e.g. plastic & fibreglass.
• Programmable range model has adjustable detection range – 60m to 3m.
• Self-diagnostic function.
• Rugged cable system withstands harsh environmental conditions.
• In-cab 5 stage audible & visual alert.
• Auxiliary output to activate additional items, e.g. cameras, alarms etc.
• Transient, short circuit, overcharge & reverse polarity protection.
• Epoxy filled for maximum vibration resistance.
• Environmentally sealed sensor – IP69K.
• Sensor can be steam & pressure cleaned.
• Multi-voltage.
• 3-year warranty.

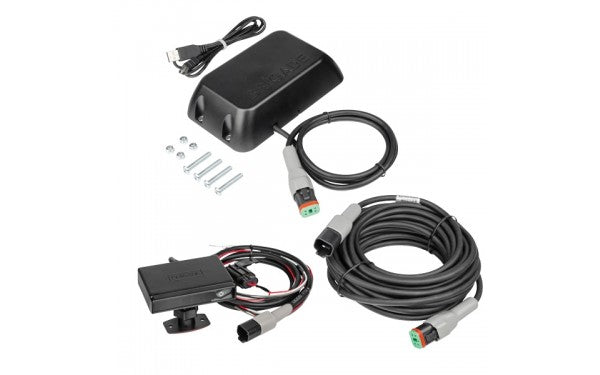

Kit Includes:

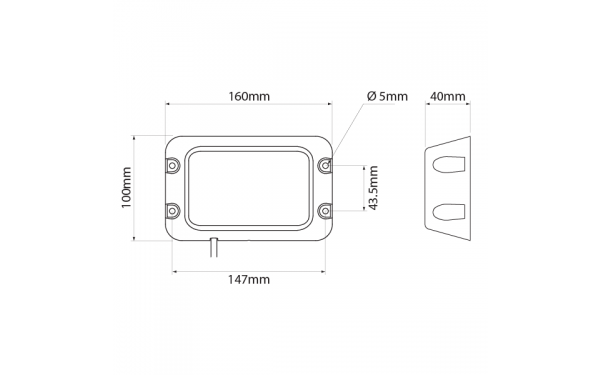

• 1x Sensor unit

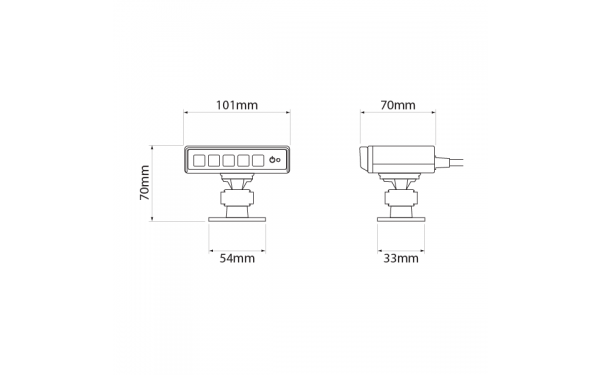

• 1x Audio/visual display
• 1x 9m Cable (sensor to display)
• Sensor & display mounting hardware
• Installations & operational manual
• USB Cable

Specifications:

Detection Range:
Fixed Range: 3m / 4.5m / 6m
Programmable Range: 60m to 3m

Detection Zones:
Fixed Range: 5
Programmable Range: Configurable

Detection Width:
Fixed Range: 2.5m / 3.5m / 4.5m
Programmable Range: 2-16m

Voltage:12-24V

Current Draw:0.8A

Radar Frequency: 77GHz

Auxiliary Output: 0.5A

Visual Warning: 5 x LEDs

Weight:
Sensor 0.36Kg
Display 0.3Kg

Vibration: 8.3G

Shock: 51G

EMC: CE & ‘e’ marked

Approvals: ISO 16750/13766, EN13309 & FCC

Operating Temp: -40° C to 85°C

IP Rating: Sensor IP69K
