Battery Isolator/Master Switch with Auxiliary Contacts

Designed to eliminate the voltage surge that can occur with the use of a standard master switch.

When turned to the OFF position, the engine won’t run due to the power to the ignition coil or relay circuit being cut.

This prevents engine “Run on”.

To ensure the main vehicle electrical circuit is fully discharged, the resistor bleeds any residual voltage to ground.

Suitable for 6, 12, or 24 volt systems.

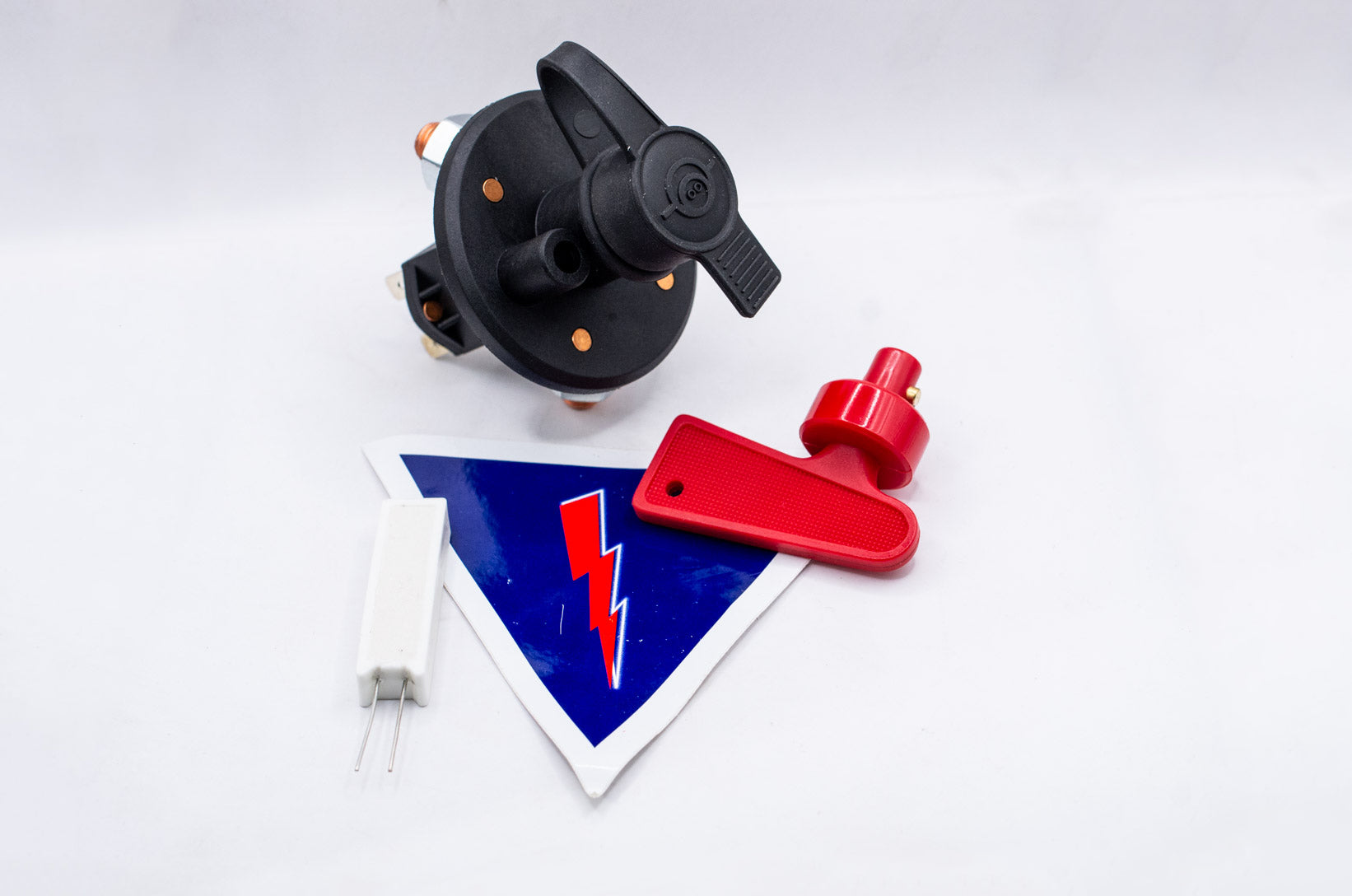

Sticker included.

Main Contact Amp rating: 100A continuous (500A intermittent)

Auxiliary Contact Amp rating: 5A continuous

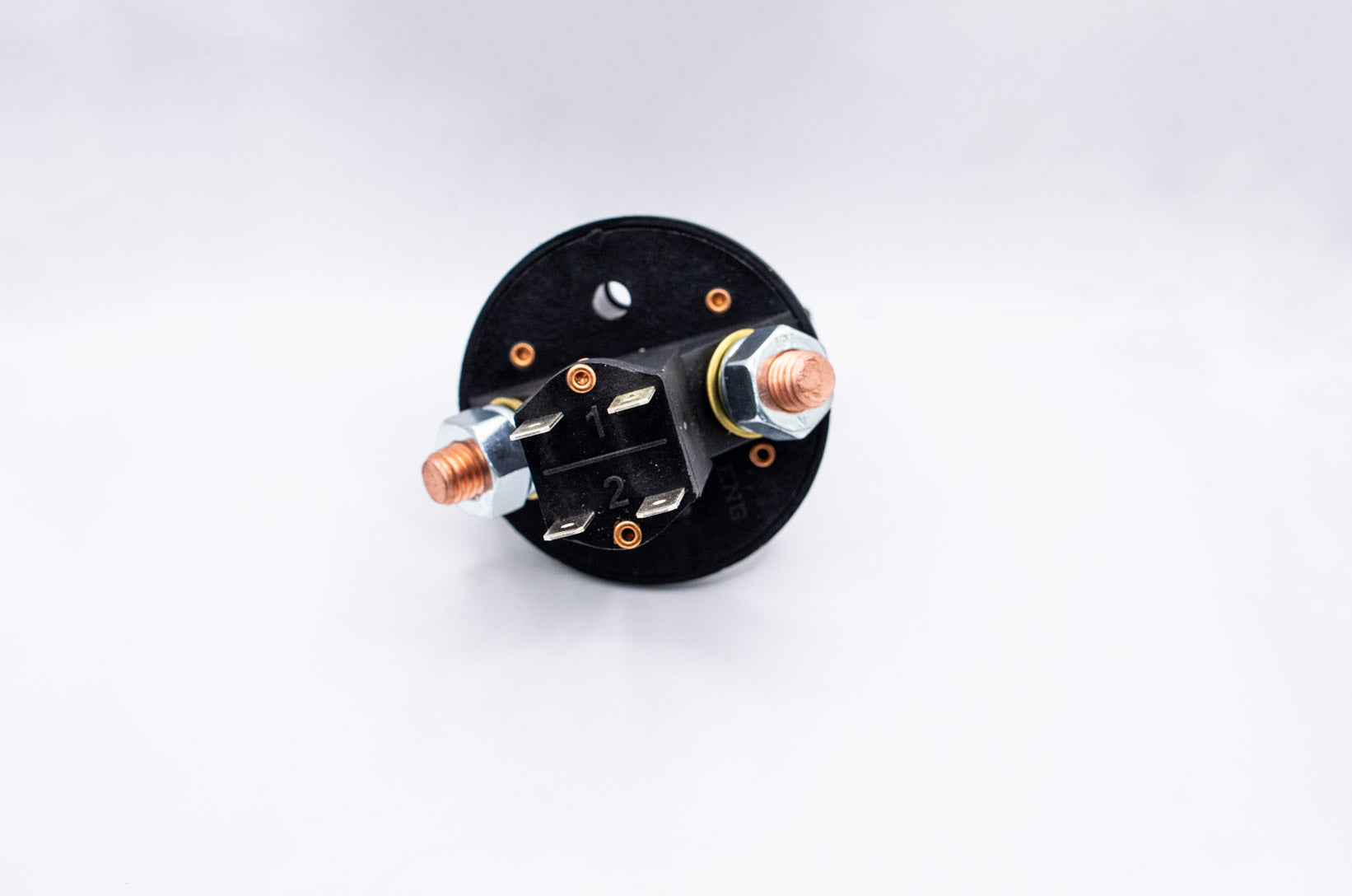

Auxiliary Contacts are NO and NC
