Deutsch Connector Mounting Tabs
Deutsch Connector Mounting Tabs
Regular price
$0.96 AUD
Regular price
Sale price
$0.96 AUD
Unit price
per
Couldn't load pickup availability

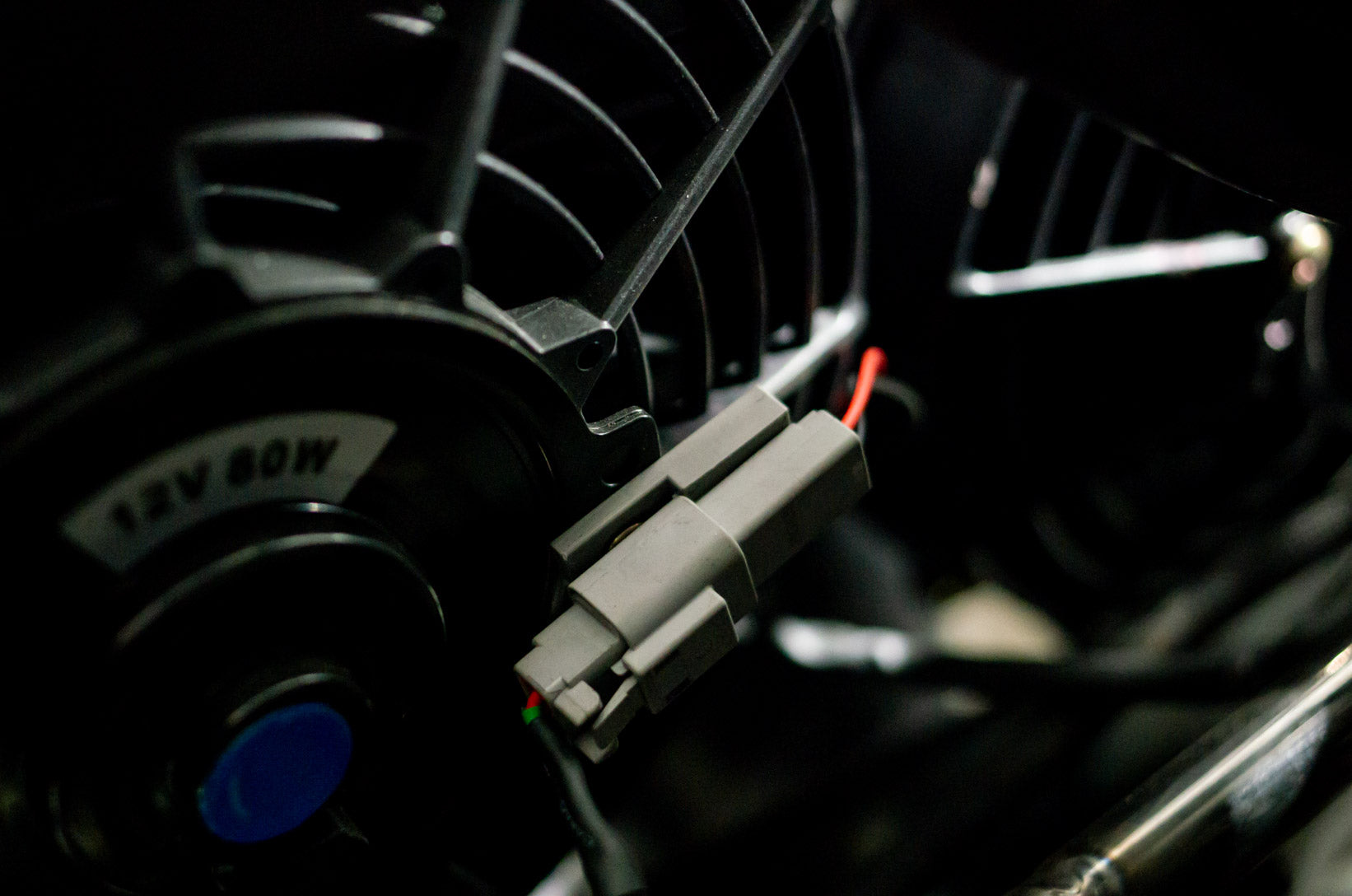

Used for mounting Deutsch connectors.

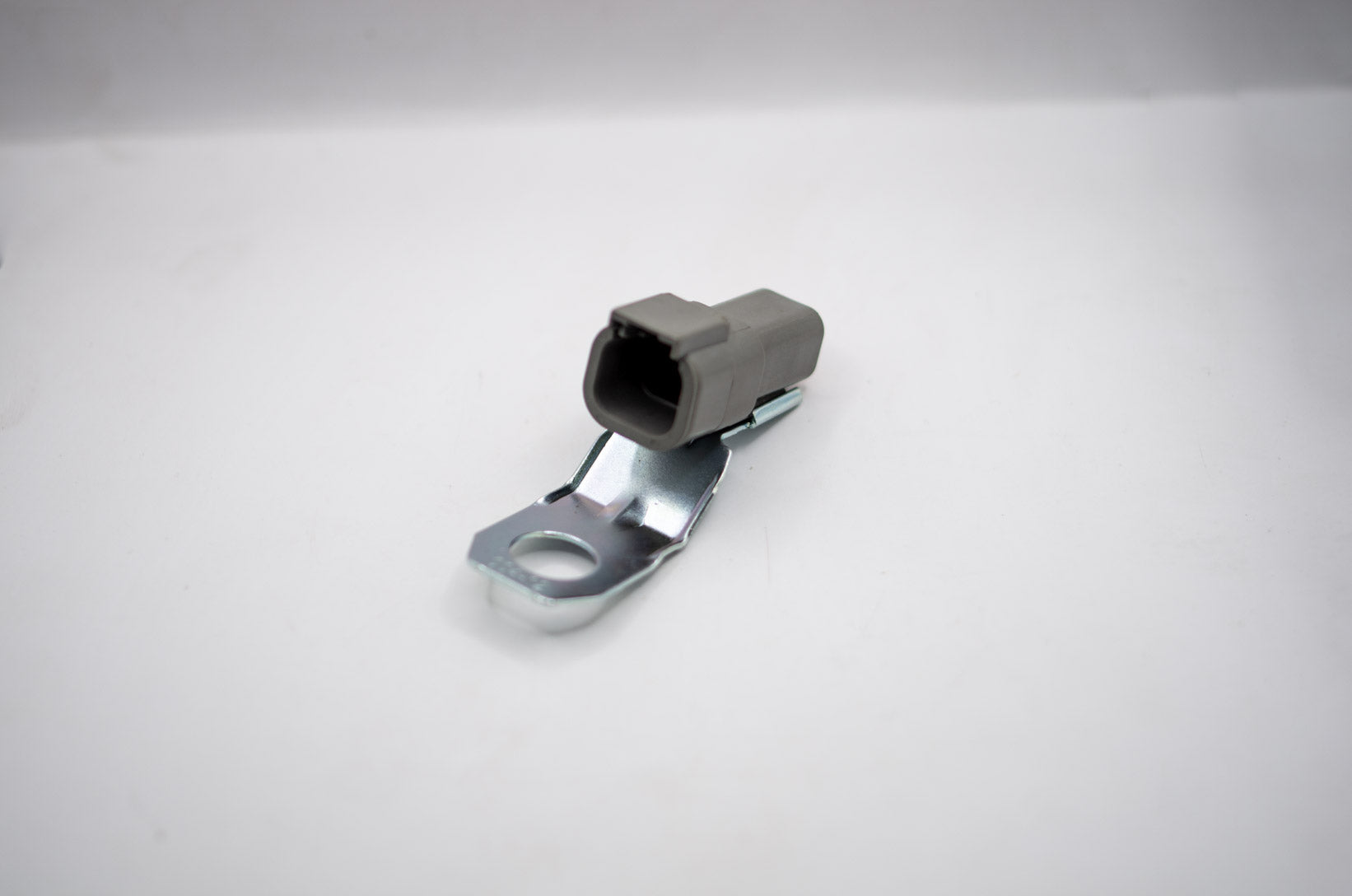

Mounting clips are installed on the receptacle to mount the connector.
Installation Instructions
To install a clip onto a receptacle, first align the clip mounting features of the housing with the clip. Then push the clip straight onto the back of the connector until a positive stop and a snap is felt.
Note:
Mounting clip is removable. Damage to receptacle retention feature may occur.
Details

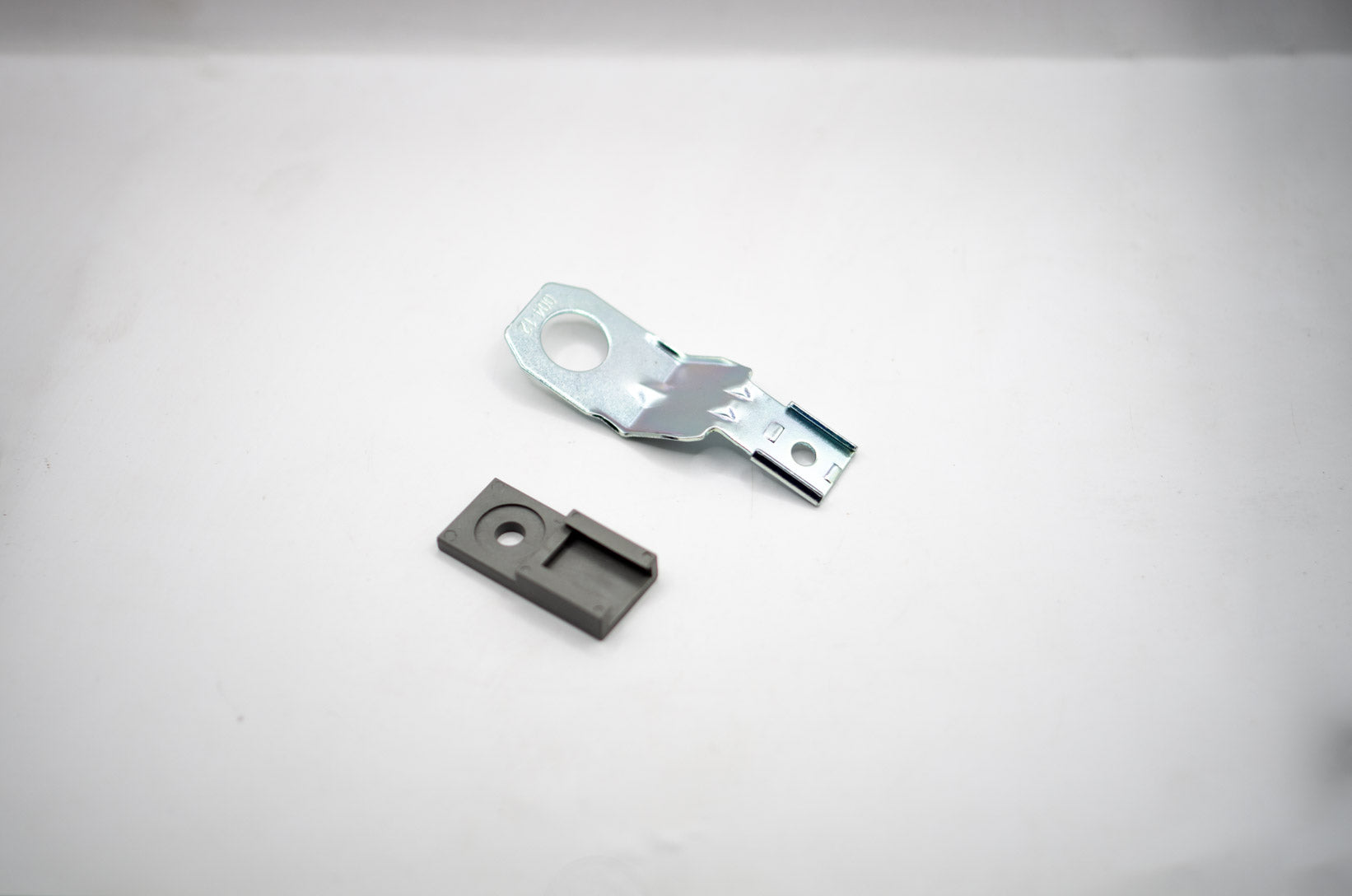

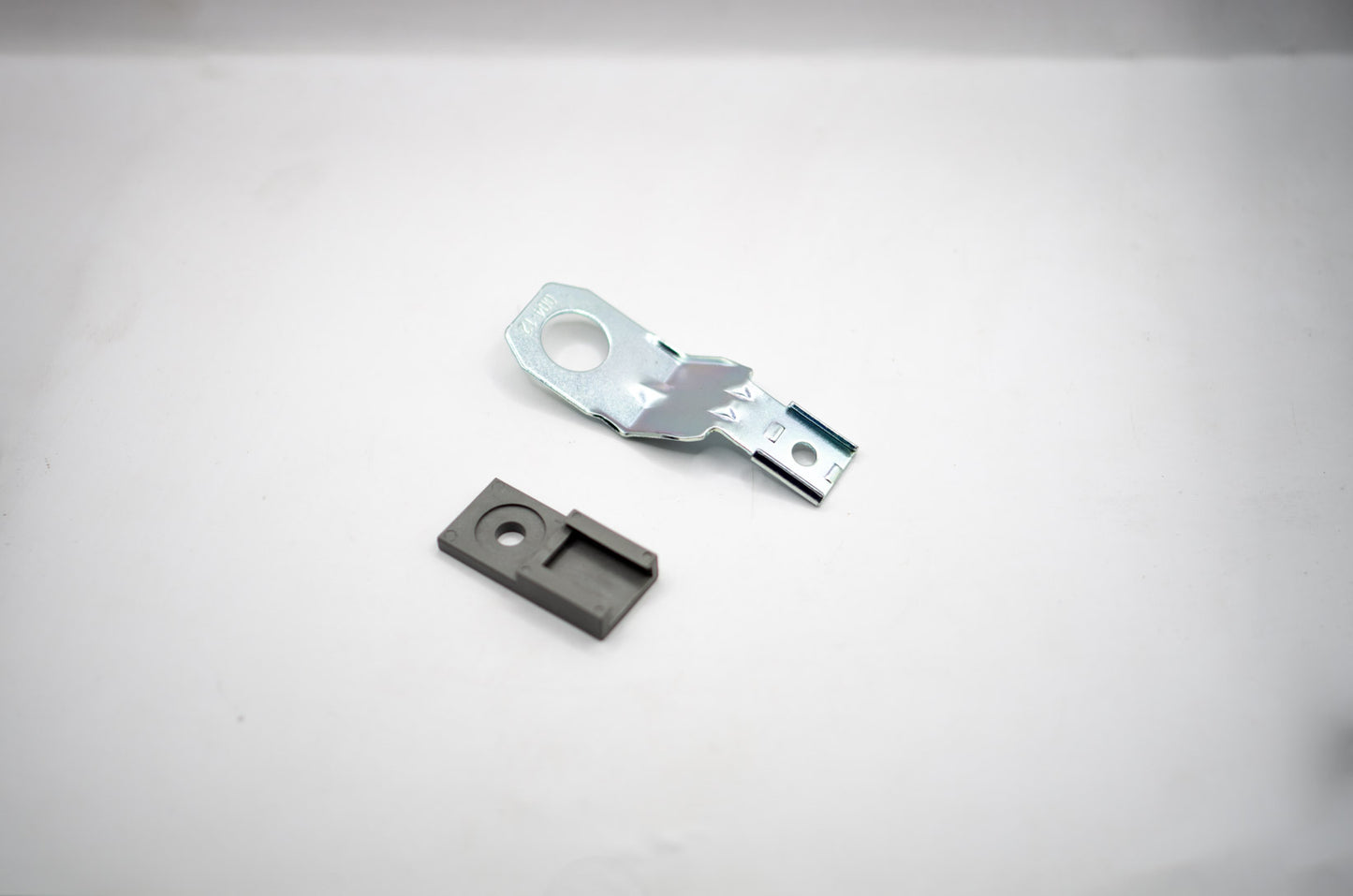

| Part Number | Material | Description | Fits |

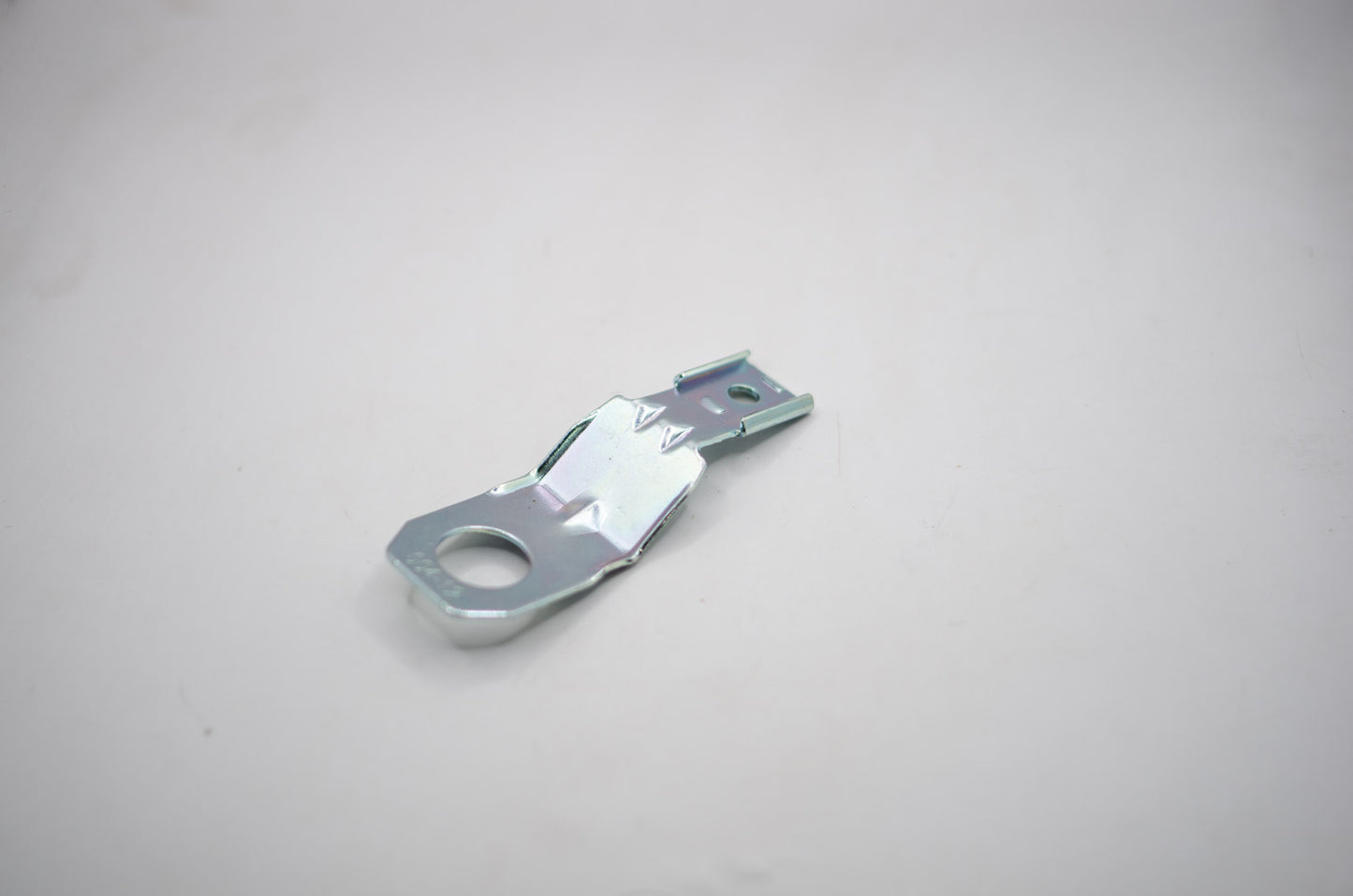

| 1027-003-1200 | Stainless Steel | Straight Mount with 11mm hole |
DT2,3,4,6,12 DTM, DTP, DTCE
|

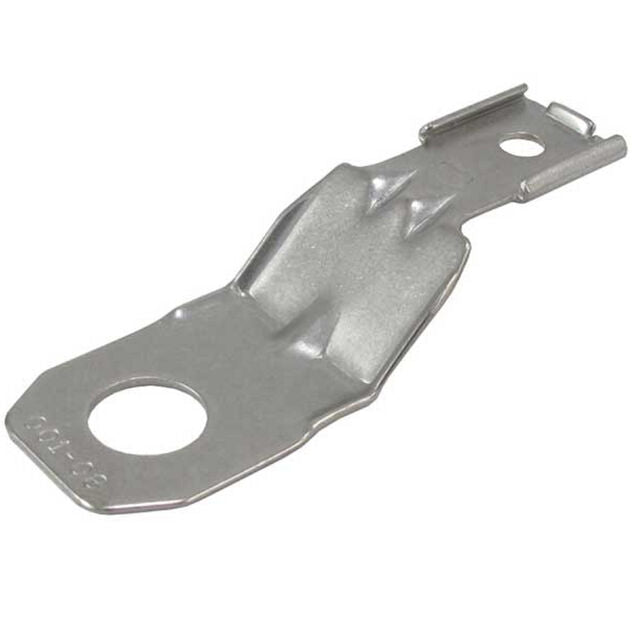

| 1027-001-0800 | Stainless Steel | Straight Mount with 11mm hole |
DT8 only
|
| 1027-005-1200 | Stainless Steel | Straight Mount with 13mm hole |
DT2,3,4,6,12 DTM, DTP, DTCE
|

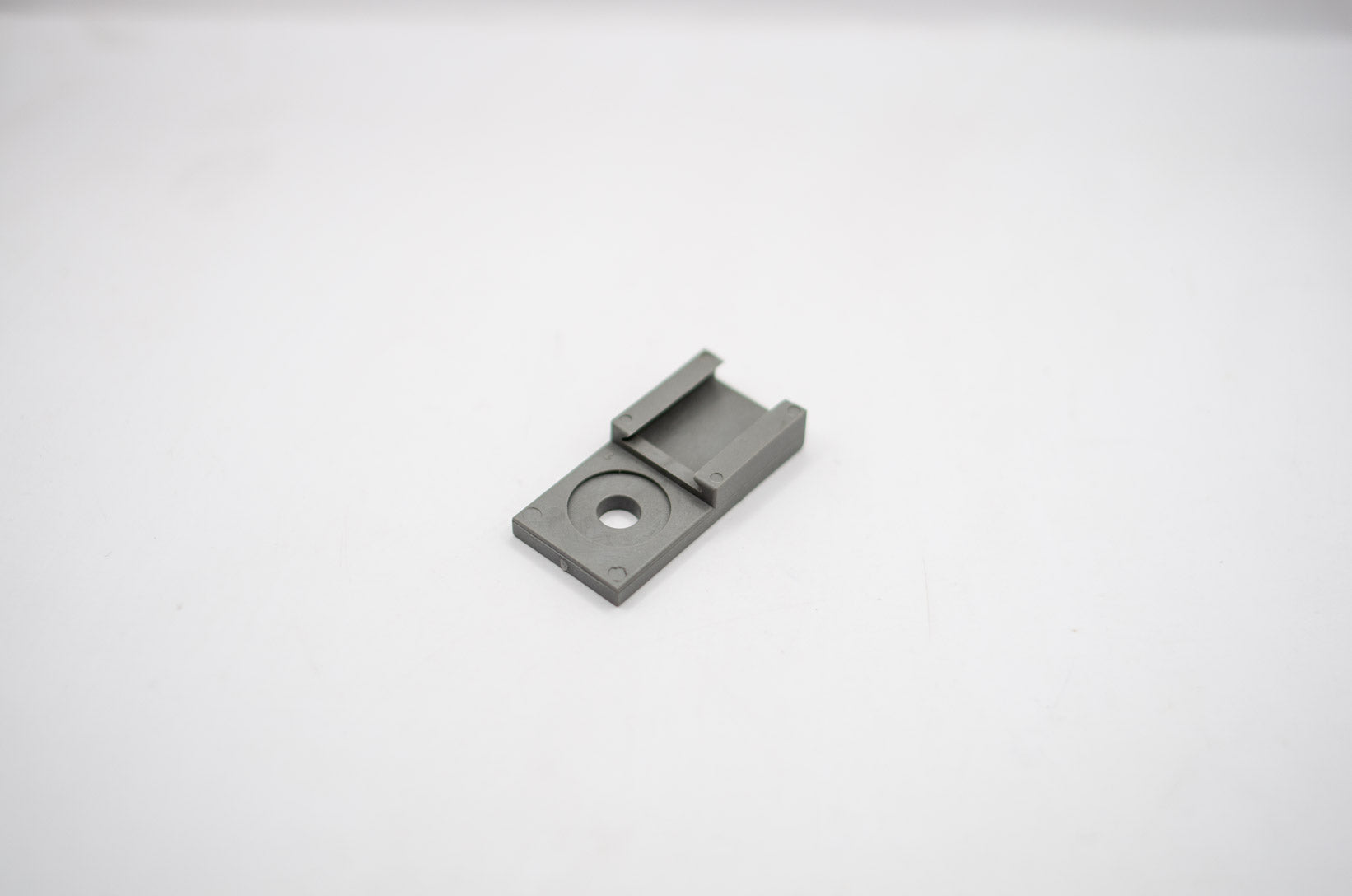

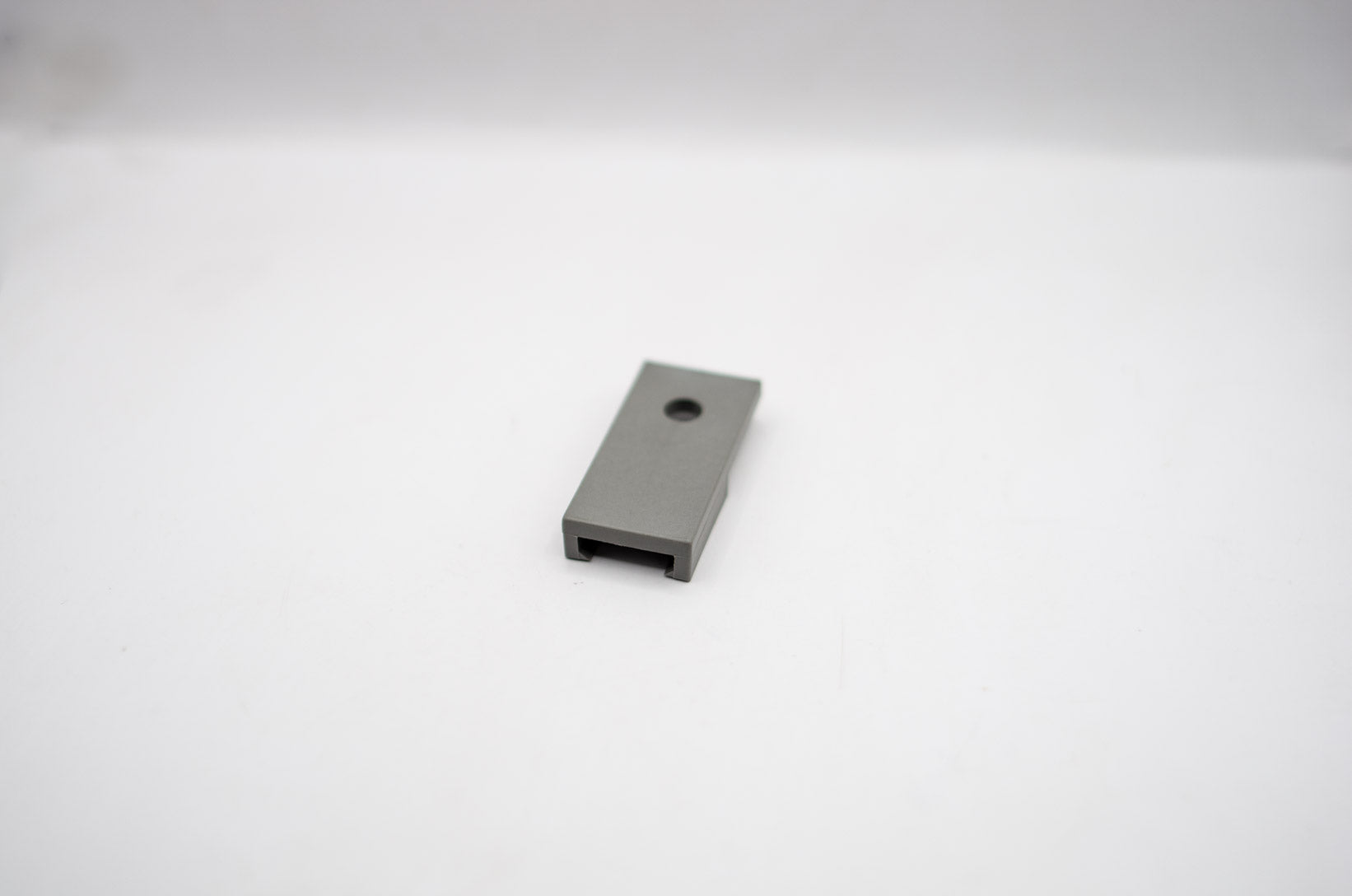

| 1011-026-0205 | Plastic (PA66 Polyamide) | Straight Mount with 5.3mm hole |
DT2,3,4,6,12 DTM, DTP, DTCE
|

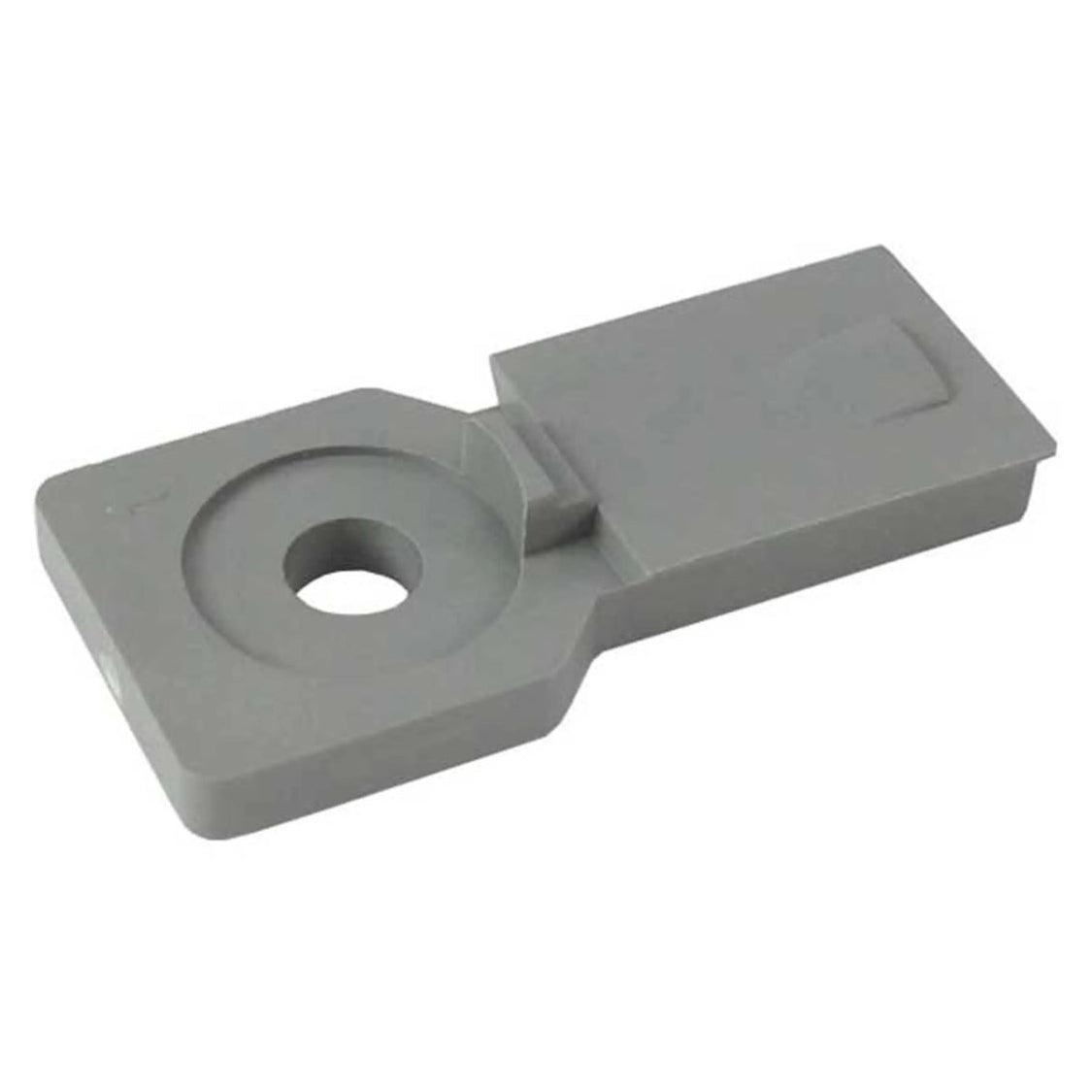

| 1011-027-0805 | Plastic (PA66 Polyamide) | Straight Mount with 5.3mm hole |
DT8 only
|

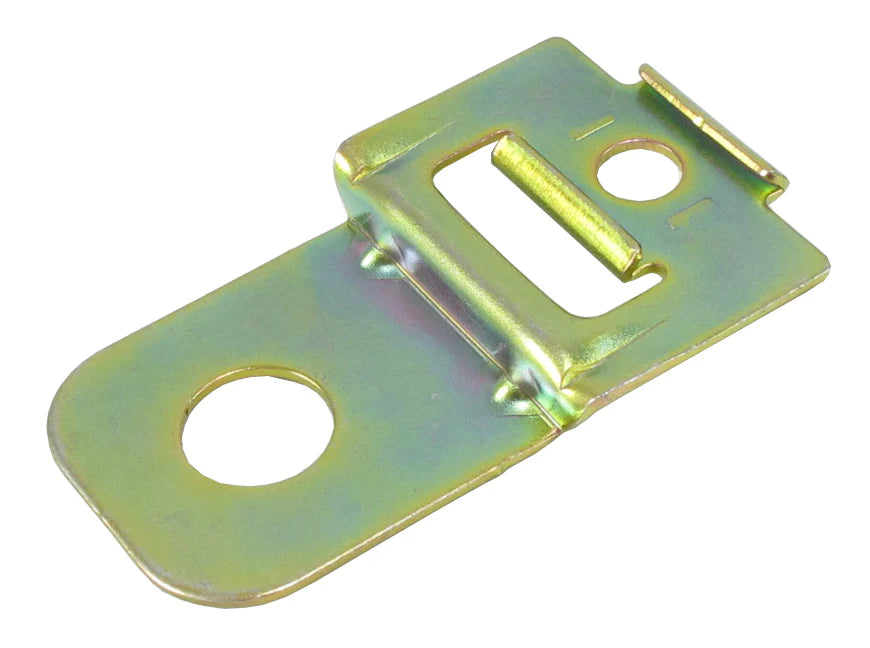

| 1027-008-1200 | Zinc-plated Steel | Side Mount with 11mm hole |
DT2,3,4,6,12 DTM, DTP, DTCE
|
| 1027-009-1200 | Zinc-plated Steel | Side Mount with 13mm hole |
DT2,3,4,6,12 DTM, DTP, DTCE
|
