DIN Connectors
DIN Connectors
Regular price
$50.52 AUD
Regular price
Sale price
$50.52 AUD
Unit price
per
Couldn't load pickup availability

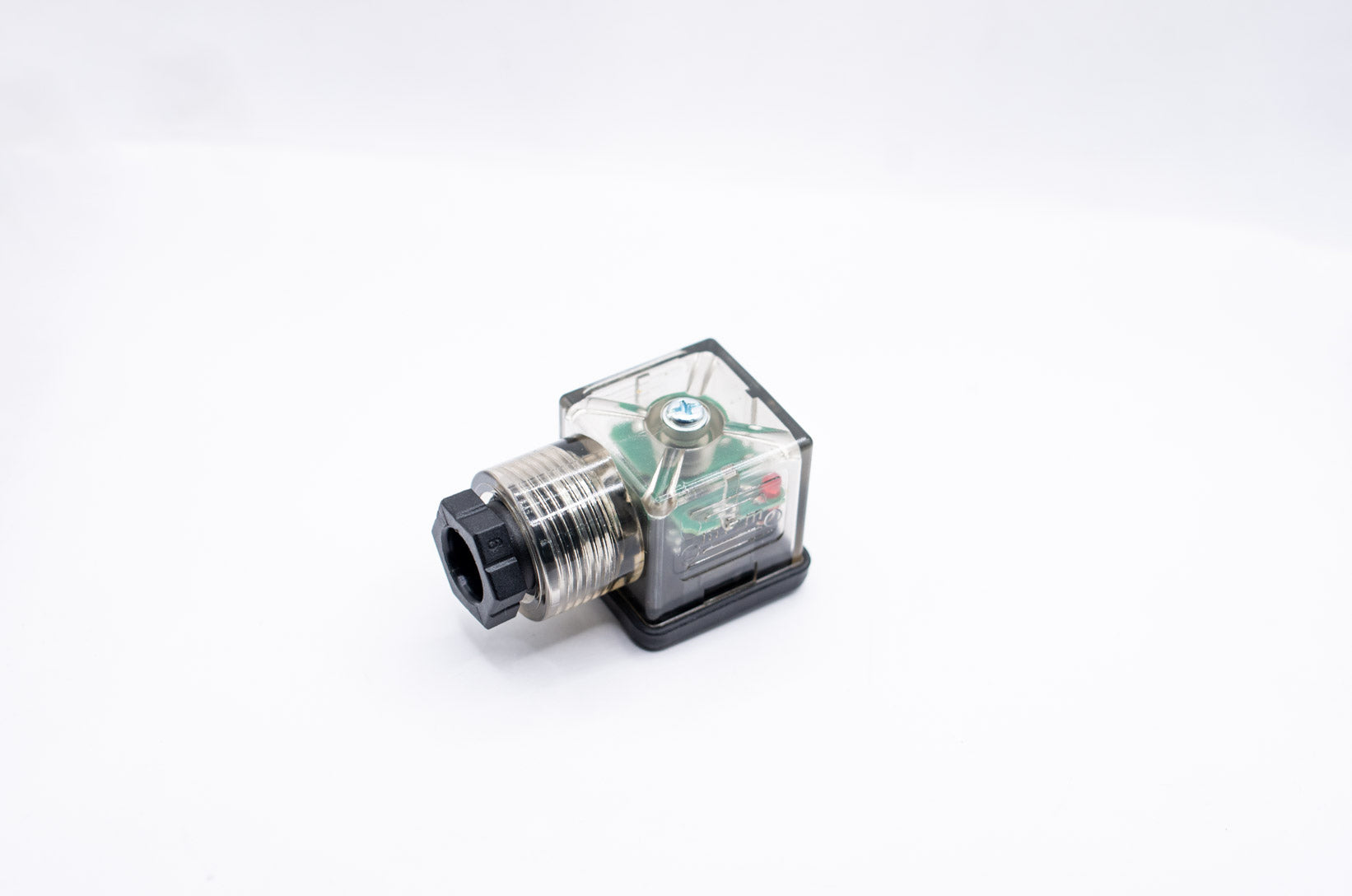

This DIN connector features a transparent housing and a diagnostic LED.
| Voltage | 12-24V |
| Current Rating | 16A |
| Contacts |
Silver-plated Brass
|
| Operating Temperature |
-40°C to 90°C HP003 -25°C to 75°C |
| Ingress Protection | IP65 |
The built-in cable gland provides strain relief and environmental sealing.
| Part Number | Terminals | Housing | Thread | Features |
| HP001 | 3 | Polypropylene (Clear) | PG07 | Diagnostic LED |
| HP002 | 3 | Polypropylene (Black) | PG07 | |
| HP003 | 4 | Polyamide | PG11 |
Sizing:
| HP001 | HP002 | HP003 |
 |
 |
 |
Made in North America.
