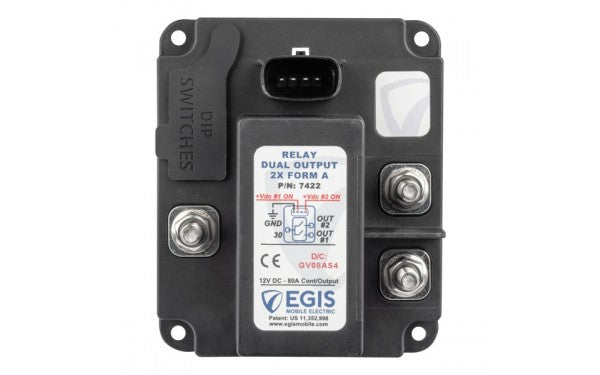

EGIS Double Pole Solenoids 2x80A - Battery/Power Management

• Common input double pole solenoid.
• Independent switching.
• Remotely switch electrical loads reducing voltage drop and cable cost.
• Robust construction.
• Environmentally sealed – IP64.
• 4-year warranty.
• Made in North America.

Available in two voltage range options:
8-18V or 16-34V

Continuous Current Rating Per Circuit: 80A

Intermittent Current Rating Per Circuit: 120A

Contact Type: N/O

Operational Draw:
8-18V Model: 175mA
16-34V Model: 90mA

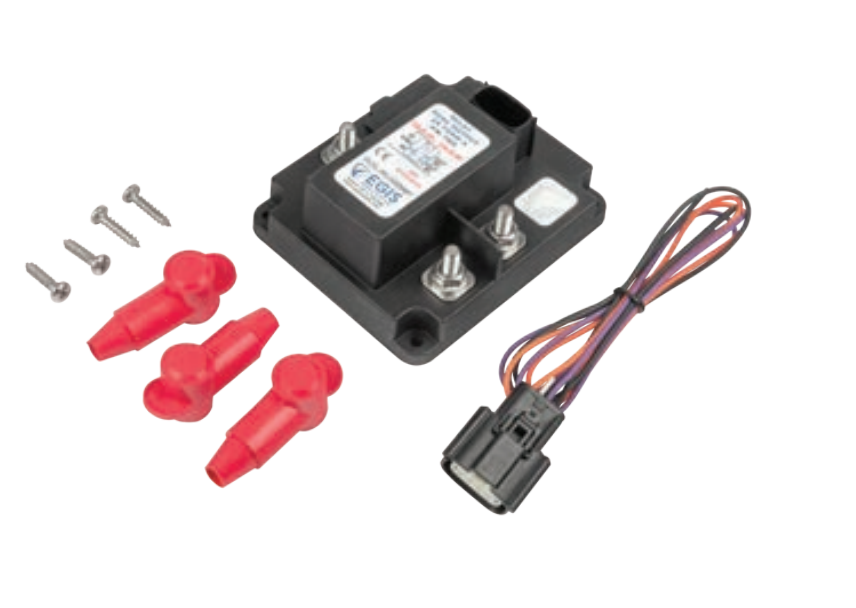

Included:

• EGIS Module
• 3x Terminal Insulators
• 4x Mounting Screws
• 1x Molex Connector with 600mm flying lead
