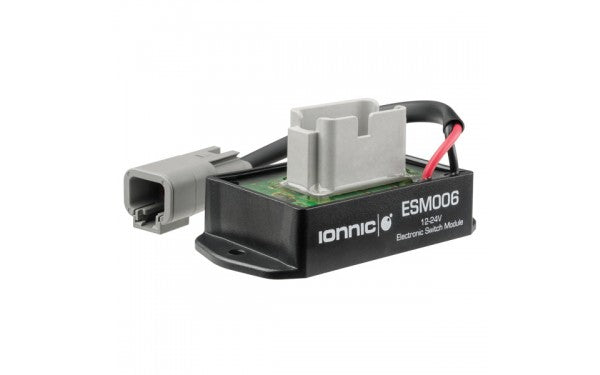

Electronic Switch Module Mini Kit

The ESM Mini is a compact, electronically controlled switch module with inbuilt circuit monitoring and protection.

The unit can be used in any application where conventional circuit protection may have been used in the past.

The ESM Mini can be used for any application, from connecting auxiliary lighting off original vehicle tails lights, e.g. Minebar hook up, to monitoring and protecting a range of auxiliary equipment switched off the original vehicle inputs or from after market toggle, rocker switches etc.

If a short circuit or over current condition presents on any of the outputs then the affected output will shut down. This circuit will then cycle 3 times (on/off) and if the over current situation is still present the output will then be locked in the off state until the fault is rectified and the input is reset.

• Allows for the installation of electrical accessories to late model vehicles without creating additional load, avoiding system errors and fault codes.
• Electronically monitored switch module with inbuilt circuit monitoring and protection.
• Each output surge protected to 8A.
• 6 inputs, 6 outputs – 12V.
• 5 inputs, 5 outputs – 24V.
• Compact design.
• Save space and installation time.
• Eliminates excess wiring.
• Multi-voltage.
• Epoxy filled for enhanced moisture and vibration protection.

Specification:

Voltage: 12-24V

Inputs:
6 x 12V
5 x 24V

Outputs:
6 x 12V
5 x 24V

Current Rating:
7A Max. Per Output
20A Total Output

Switch: Positive

Housing Material: ABS

Cable Length: 120mm

Operating Temp: -40°C to 85°C

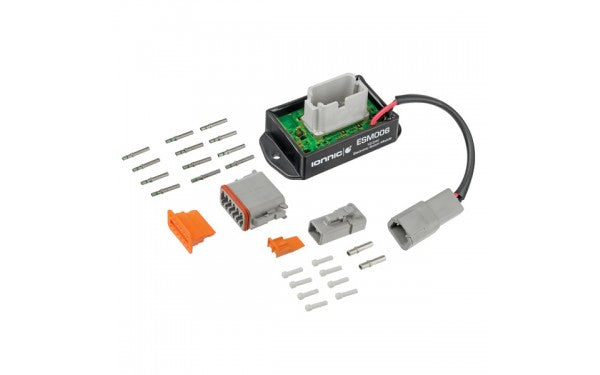

Kit Contents:

• ESM Control Module
• 1x DT (DT06-12SA)
• 1x DTP (DPT04-2P)
• 1x DTP (DTP06-2S)
• 8x Cavity Plug (114017)
• 1x Wedgelock DT (W12S)
• 1x Wedgelock DTP (WP2P)
• 1x Wedgelock DTP (WP2S)
• 2x Pin Size 12 (0460-204-12141)
• 2x Socket Size 12 (0462-203-12141)
• 12x Socket Size 16 Green Band (0462-209-16141)
