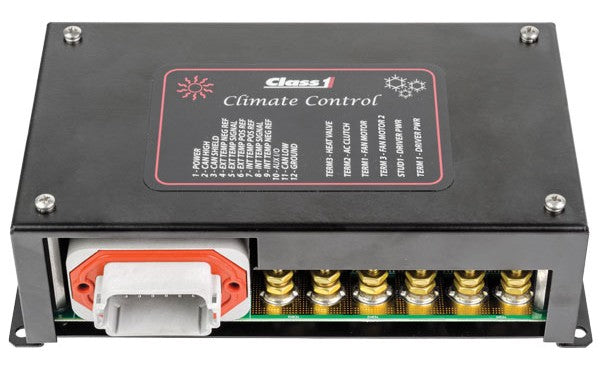

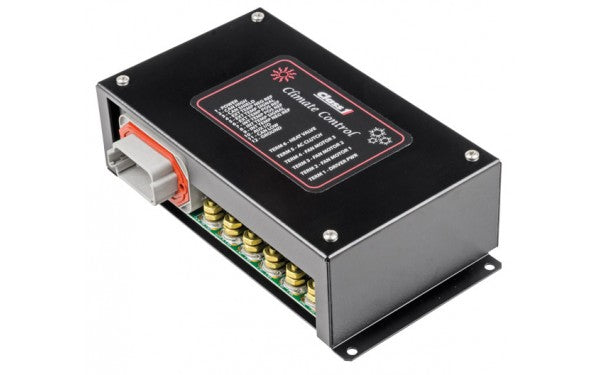

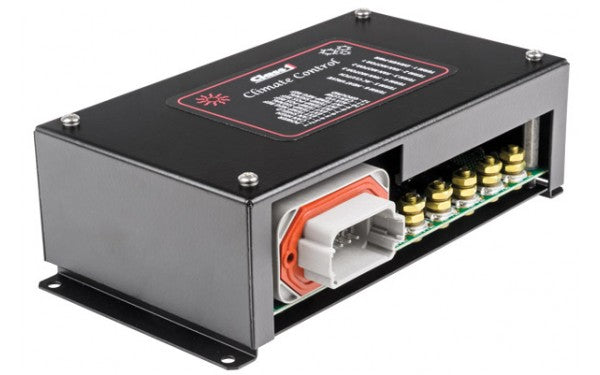

ES-Key Climate Control Module

• Controls a vehicle’s A/C compressor clutch, heat valve, and fans.
• High current digital outputs.
• Dedicated inputs for two analogue temperature sensors - internal and external.
• Pulsed Width Modulation (PWM) for blower fan outputs.
• Automatic and manual modes of operation.
• Integrates control with Ultraview display.
• Configurable input/output.
• Multi-voltage.

Specifications:

Voltage: 9-32V

CAN: SAE J1939

Current Rating:
Fan - 25A Max.
AC Clutch - 15A Max.
Heat Valve - 15A Max.

Body: Powder-coated Steel

Approvals: SAE J1113

Operating Temp: -40°C to 85°C

Other Accessories are available separately
