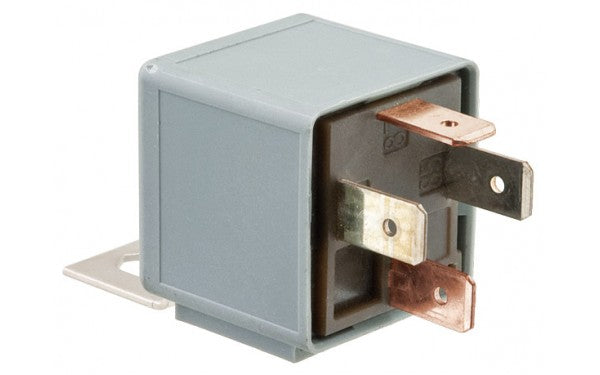

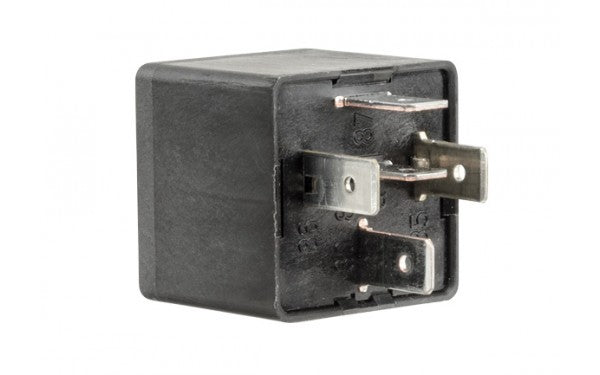

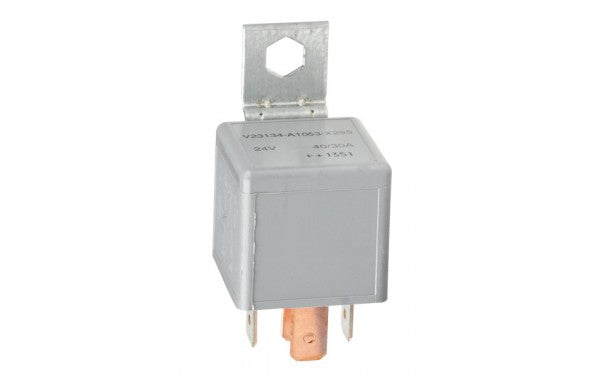

General Purpose Mini Relays
General Purpose Mini Relays
Regular price
$37.21 AUD
Regular price
Sale price
$37.21 AUD
Unit price
per
Couldn't load pickup availability
All models except P1524 are resistor protected
| Part Number | Voltage | Current Rating (A) | Contact Type | Number of Terminals | Fig |
Mounting Bracket
|
| P1424R | 24 | 40 | N/O | 4 | 1 | Removable |
| P1512R | 12 | 40 | N/O | 5 | 2 | Removable |
| P1524 | 24 | 20 | N/O | 5 | 2 | Fixed |
| P2512R | 12 | 40/30 | C/O | 5 | 3 | Removable |
| P2524R | 24 | 40/30 | C/O | 5 | 3 | Removable |
| P3512R | 12 | 40/30 | C/O | 5 | 3 | No Bracket |
