Brighton Auto Electric

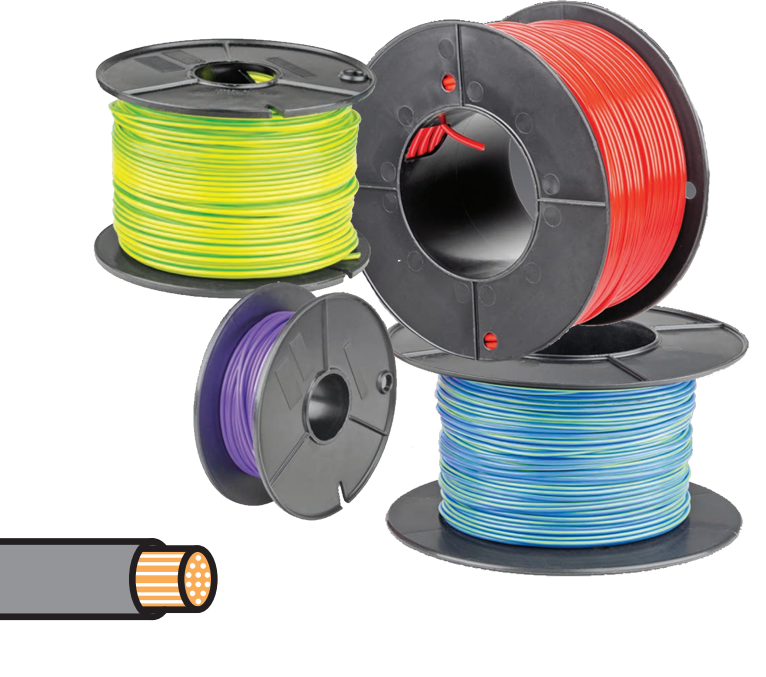

Grey Single Cable
Grey Single Cable
Regular price
$34.13 AUD
Regular price
Sale price
$34.13 AUD
Unit price
per
Couldn't load pickup availability
• RoHS Compliant
• Oxygen free, high conductivity copper.
• Large range of colour and trace combinations.
• Made in Australia
| Conductor | Annealed Electrolytic Copper |
| Insulation | UV Stabilised V90HT PVC |
| Max Voltage | 50V |
| Approvals | RoHS |
| Max. Operating Temperature | 90°C |
| T1-3 | T1-4 | T1-5 | T1-6 | |
| Industry Equivalent mm | 3 | 4 | 5 | 6 |
| Nominal Area (mm²) | 1.13 | 1.84 | 2.9 | 4.59 |
| Strand Count | 14 | 23 | 36 | 57 |
| Strand Diameter (mm) | 0.32 | 0.32 | 0.32 | 0.32 |
| Nominal O.D. (mm) | 2.2 | 2.3 | 3 | 4 |
When Industry Equivalent mm is referenced it refers to the industry term for identifying cable size, not the conductor size (nominal area)
