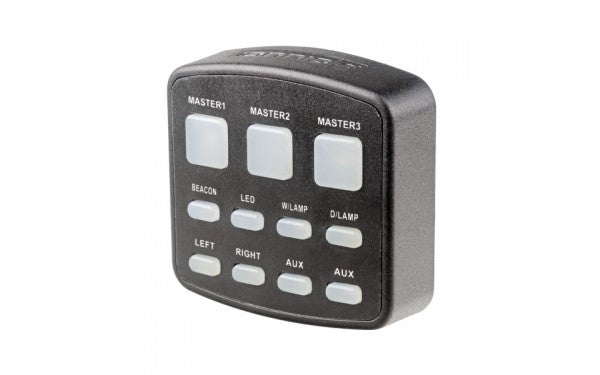

ICS Programmable Switch Panel Kit

• Developed to control lighting and other electronic automotive accessories.
• Incorporates the latest in onboard circuit protection and monitoring technology.
• 3 user configurable master switches.
• All switches can be set to latching or momentary.

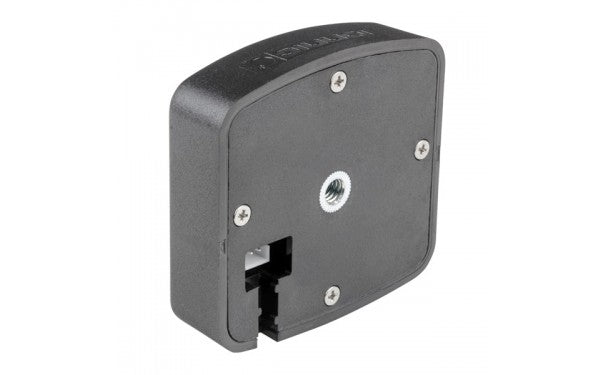

• Mounting point on back of switch panel – use with common 1/4" thread adjustable mounts.
• Epoxy encapsulated receiver module for enhanced moisture and vibration protection.
• Includes 4 decals.
• 8 outputs (6A each).
• Multiple outputs can be combined to allow switching of high current loads.
• Eliminates excess wiring.
• Multi-voltage.
• Compact design.

Specifications:

Voltage: 10-24V

Circuits:
8 Individual
3 Programmable

Current Rating:
6A Max. per circuit
40A Total

Materials: ABS

Controller Harness: 4.5m

Operating Temp: -40°C to 85°C

Kit Contents:

• 1 x Switch Panel

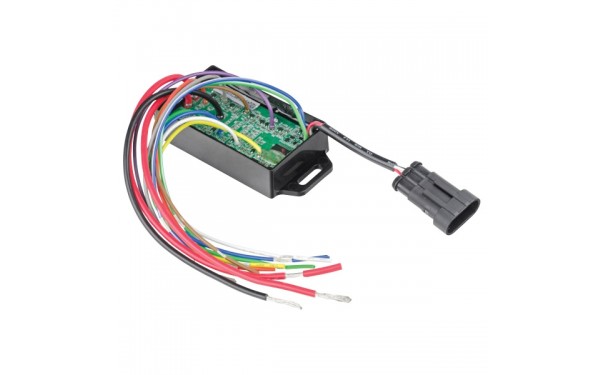

• 1 x Receiver Module

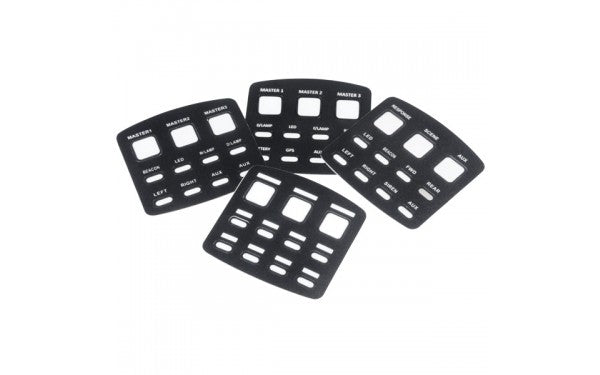

• 4 x Overlay Function Decals
• 1 x 4.5m Cable (Switch Panel to Receiver)
• Mounting Screws & Washers
• Double Sided Mounting Tape
