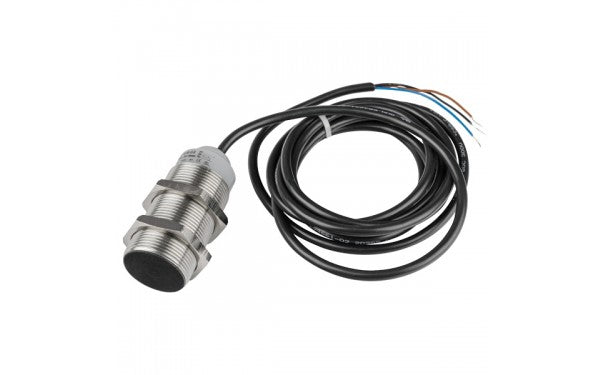

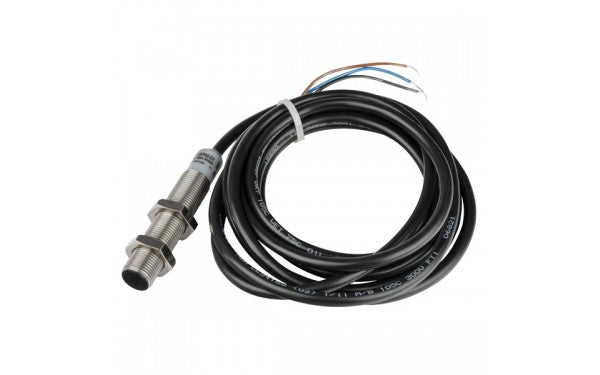

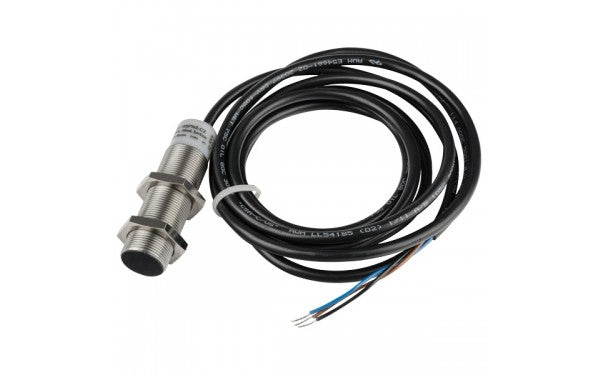

Inductive Proximity Switch - DC

• Non-contact sensor for metal objects.
• Reverse polarity protected.
• Ideal for machine tool detection, press applications, cam detection, material handling, valve and shaft position, automotive assembly.
• Suitable for harsh industrial environments.

Ensure maximum current load is not exceeded. Compatible with automotive relays & electronic modules.

Available in three sizes:

M12

M18

M30

Wiring diagram:

Specifications:

Voltage Type: DC

Voltage: 10-30

Sensing Range:
M12: 2mm
M18: 5mm
M30: 10mm

Output Function: N/O

Output Type: PNP

Cable Length: 2m

Body: Nickel-plated Brass

Front Cap: Polyphenylene Sulfide (PPS)

Shock: 50GN (IEC 60068-2-27)

Vibration: 10-55Hz

Operating Temperature: -25°C to 70°C

IP Rating: IP67

Switching Capacity (DC): 100mA
