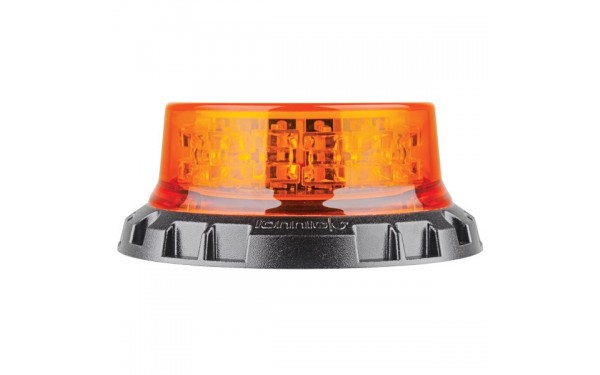

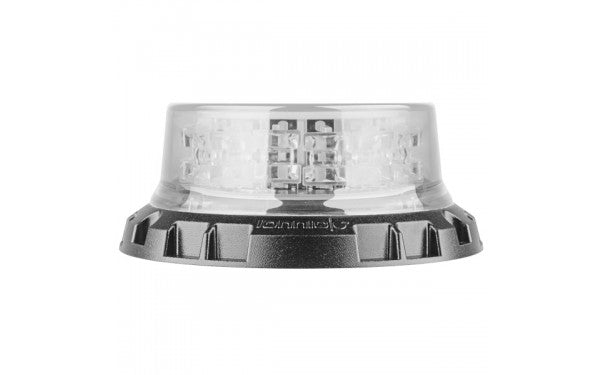

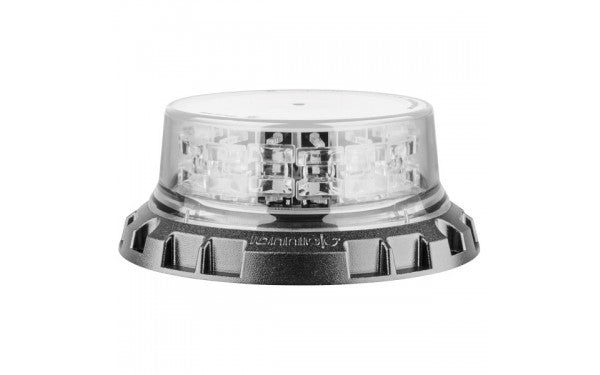

IONNIC 103 LED Beacon - 3 Bolt

Supplied with 3x M6 bolts, nuts, shake-proof washers & base gasket.

Mounting: 3x Ø 7mm holes @ 151mm PCD.

Cable Length - 700mm

• SAE class 1 rated output on selected models.
• 11 flash patterns.
• Vibration resistance rated to SAE J575.
• New rugged base design with increased surface area providing improved heat dissipation.
• Polycarbonate lens for high durability.
• Low current draw.
• 103 & 106 beacons can be synchronised.
• Multi-voltage.
• Environmentally sealed – IP67.
• Aerodynamic low profile.
• 5 year warranty.

Specifications:

Voltage: 12-24V

Current Draw: 3.2A @ 12V

Flash Patterns: 11

Lens: Polycarbonate

Base: Aluminium

Approvals:
Amber & Blue
ECE R10, ECE R65
Amber
SAE J845 Class1

Vibration: SAE J575

Wire Length: 700mm

Ingress Protection: IP67

Operating Temp: -30°C to 50°C

Light Source: 18 x 3W LED

Colours :
