IONNIC 106 LED Beacon - 3 Bolt

Supplied with 3x M6 bolts, nuts, shake-proof washers & base gasket.

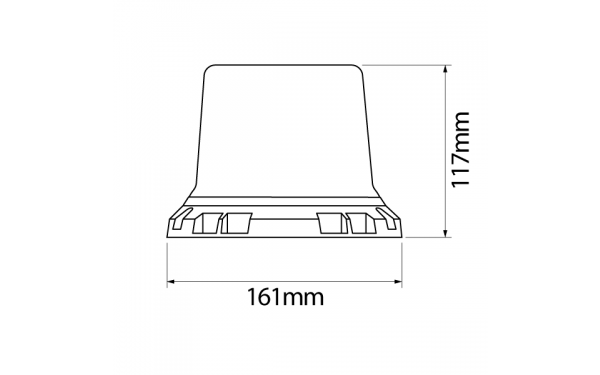

Mounting: 3x Ø 7mm holes @ 151mm PCD.

Cable Length - 230mm

• Redesigned lens optics provide stronger & brighter output.
• SAE class 1 rated output.
• 11 flash patterns.
• Vibration resistance rated to SAE J575.
• New rugged base design with increased surface area providing improved heat dissipation.
• Polycarbonate lens for high durability.
• Low current draw.
• 3 Bolt versions can be synchronised.
• Multi-voltage.
• Environmentally sealed – IP67.
• 5 year warranty.


Specifications:

• Voltage: 12-24V
• Current Draw: 3.2A @ 12V
• Flash Patterns: 11
• Lens: Polycarbonate
• Base: Aluminium
• Approvals: Amber & Blue
  ECE R10, ECE R65
  Amber
  SAE J845 Class1
• Vibration: SAE J575
• Wire Length: 230mm
• Ingress Protection: IP67
• Operating Temp: -30°C to 50°C
• Light Source: 18 x 3W LED
• Colours :
