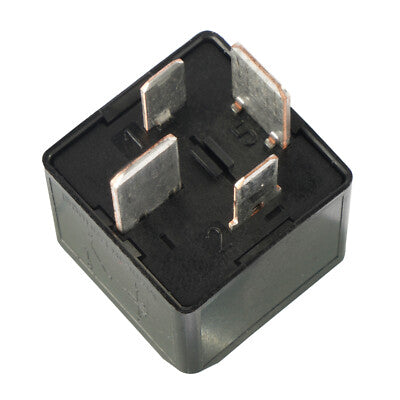

70A Latching Relay

Features:

• High current relay with magnetic latched switching.
• Reversed polarity pulse signal to change state.
• Low power consumption - short pulse of energy applied to the coil to change the switching state.
• Single coil with plus potential for set, invert polarity for reset.
• 70A continuous current @ 85°C
• Broad operating temperature.

Specifications:

• Voltage: 12V
• Contact: Silver Alloy
• Contact Switching Current: 1000mA @ 5V
• Body: Glass Reinforced Nylon
• Ingress Protection: IP54
• Approvals: RoHS
• Operating Temperature: -40°C to 125°C
