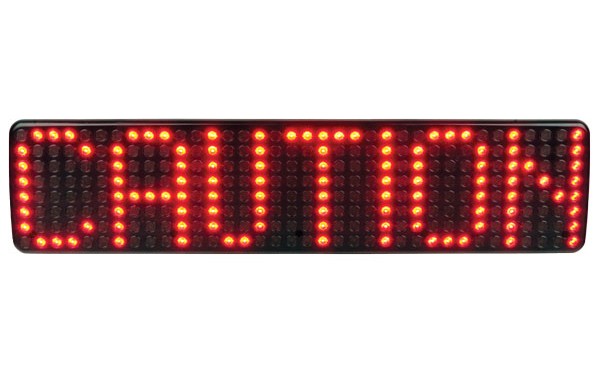

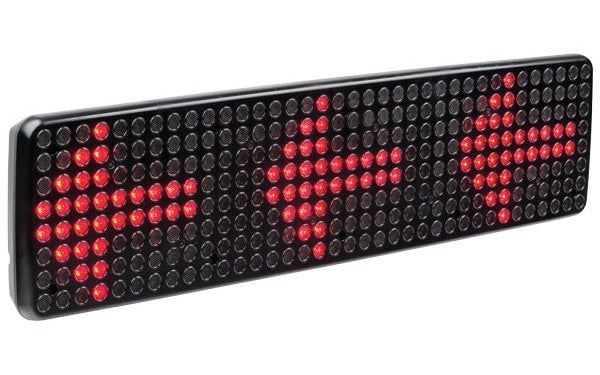

LED Message Display Kit

Ionnic CD0012R Master M5 Matrix Display

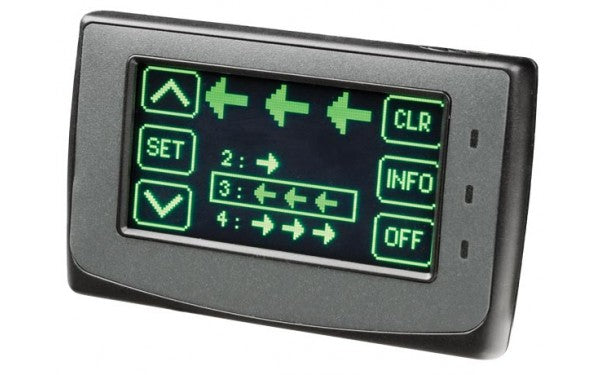

• Touch screen controller.
• Simple and easy to operate user interface.
• 2GB Micro SD card message storage.
• Up to 99 messages.
• PC software to create/edit messages.
• Easily readable from 100m.
• Auto text rotation when mounted upside-down.
• ECE R10 & C-Tick approved.
• Protected against reverse-polarity, supply transients and thermal overload.
• Multi-voltage.
• Park, ignition and remote switching inputs.
• Environmentally sealed - IP67 (display only).

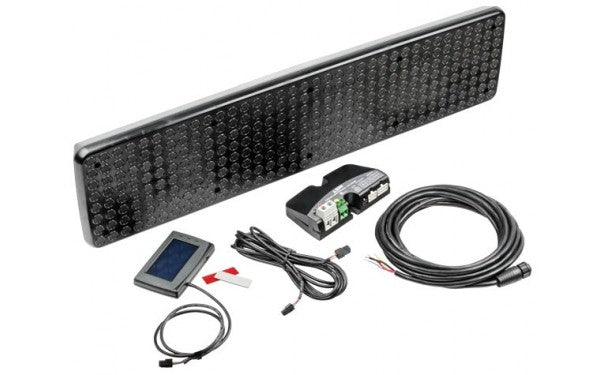

Kit Contents:

• 1x Display board
• 1x Touch screen controller
• 1x 2.5m Controller extension harness
• 1x 5m Display harness
• 1x Junction Box

Specifications:

Voltage: 10-30V

Current Draw: 2.6A @ 13.6V

Weight: 2.2 kg

Light Source: 8 x 6 (288) LEDs

Controller: Touch Screen

Power Harness: 5m

Controller Harness: 0.6m
Extension 2.5m

Approvals: ECE R10 (Display only)
C-Tick No. N19830

IP Rating: IP67 (Display Only)

Operating Temp: -20°C to 65°C

Colours :
