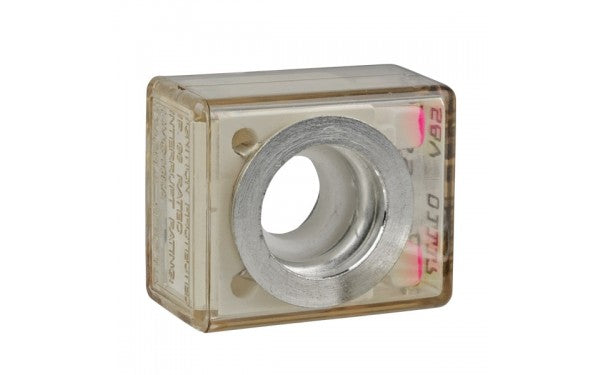

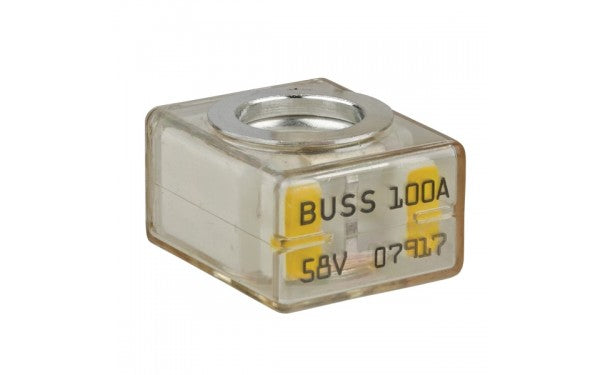

Marine Rated Battery Fuses

• Designed for the most demanding environments providing high current protection in the tightest space constraints.
• Suitable for main and auxiliary circuit protection such as alternator outputs, starter motor inputs and accessory circuits.
• Breaking capacities meet the requirements of conventional vehicle batteries and 12V, 24V and 42V electrical networks.
• Full range circuit protection for automotive and marine applications.
• Colour-coded to current rating.

Specifications:

• Type: Battery Fuse
• Current Rating: 40A, 50A, 80A, 100A, 125A, 175A, 200A, 225A, 250A
• Mount: Single Bolt M8
• Terminals: Tin-plated brass
• Body: Ceramic
• Housing Material: UL-Rated 94V0 Thermoplastic
• Approvals: ISO 8820-6
