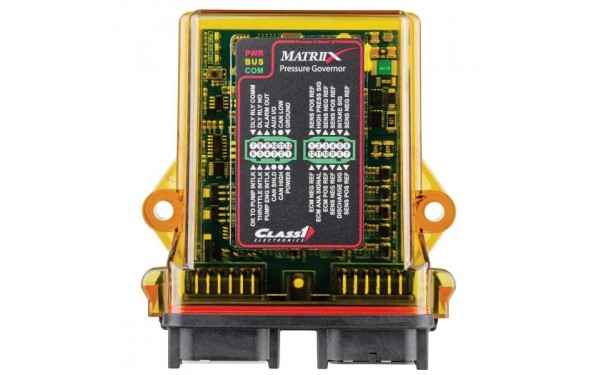

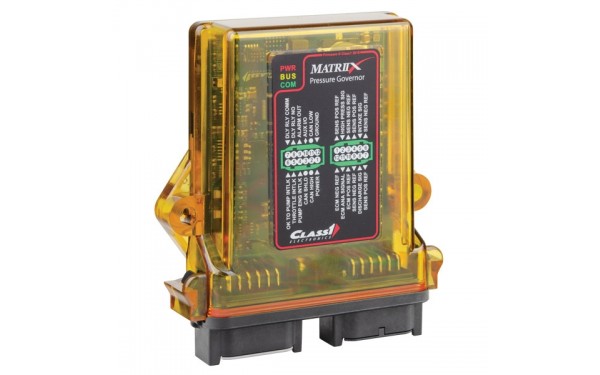

MatrixGOVERNOR II Pressure Governor Module

Flexible, powerful and state-of the-art. The MatrixGOVERNOR II monitors and controls your pump discharge pressure to maintain desired operating pressure range.

With intelligent controls, it detects conditions when water supply is reduced or cut off and reacts the way an operator would to keep engine speed from increasing out of control.

SAE J1939 compliant stand-alone fully functional pressure governor module maintains set pressure by reducing or increasing engine RPM.

The MatrixGOVERNOR II features self-diagnostics which sends out alerts when an error or fault conditions occurs. It saves and sends pump session data, alarms, fault codes and errors over CAN for capture and analysis.

With flexible programming options – four levels of options providing customization of pump control settings, the MatrixGOVERNOR II can do what you want when you want. Featuring advanced settings for warnings and alarms, units of measure, control ramp rates, stability settings, max pressure settings and more.

• SAE J1939 compliant stand-alone fully functional pressure governor module.
• Monitors discharge pressure and maintains set pressure by reducing or increasing
• engine RPM.
• Hard wired interlocks (throttle ready, pump engaged, ok to pump).
• Increase, decrease, idle, mode (pressure or RPM), preset, high idle inputs.
• Programmable default mode (pressure, RPM or none).
• Self-diagnostic options – sends out alarms and warnings when error or fault
• conditions occur.
• Made in North America.

Specifications:

Voltage: 9-32V

Current Draw: 50mA @ 13.8V

Output Current: 250 mA

CAN: SAE J1939

Material: Polycarbonate

IP Rating: IP67

Operating Temp: -40°C to 85°C
