Micro 280 Relays
Micro 280 Relays
Regular price
$13.59 AUD
Regular price
Sale price
$13.59 AUD
Unit price
per
Couldn't load pickup availability

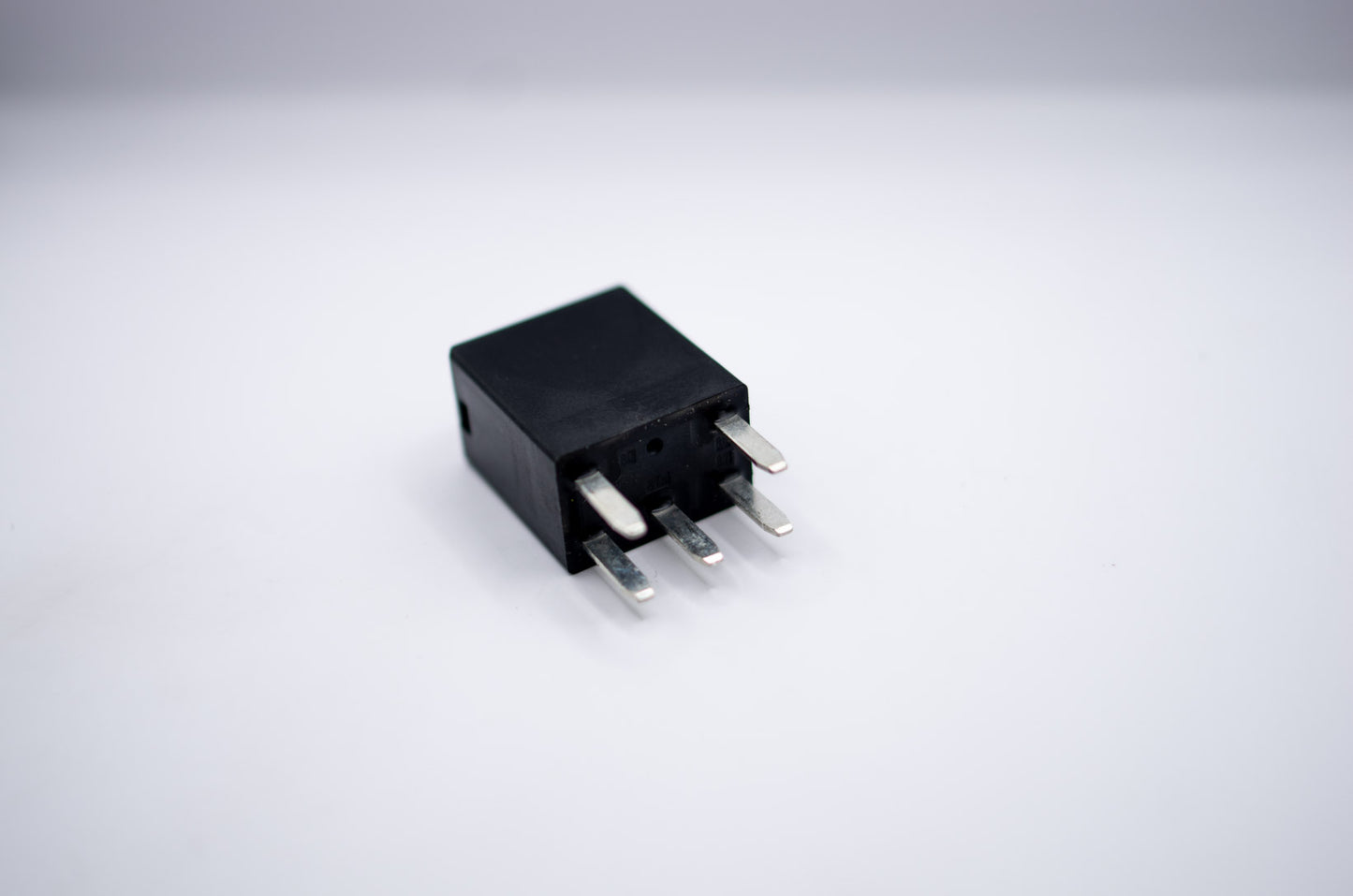

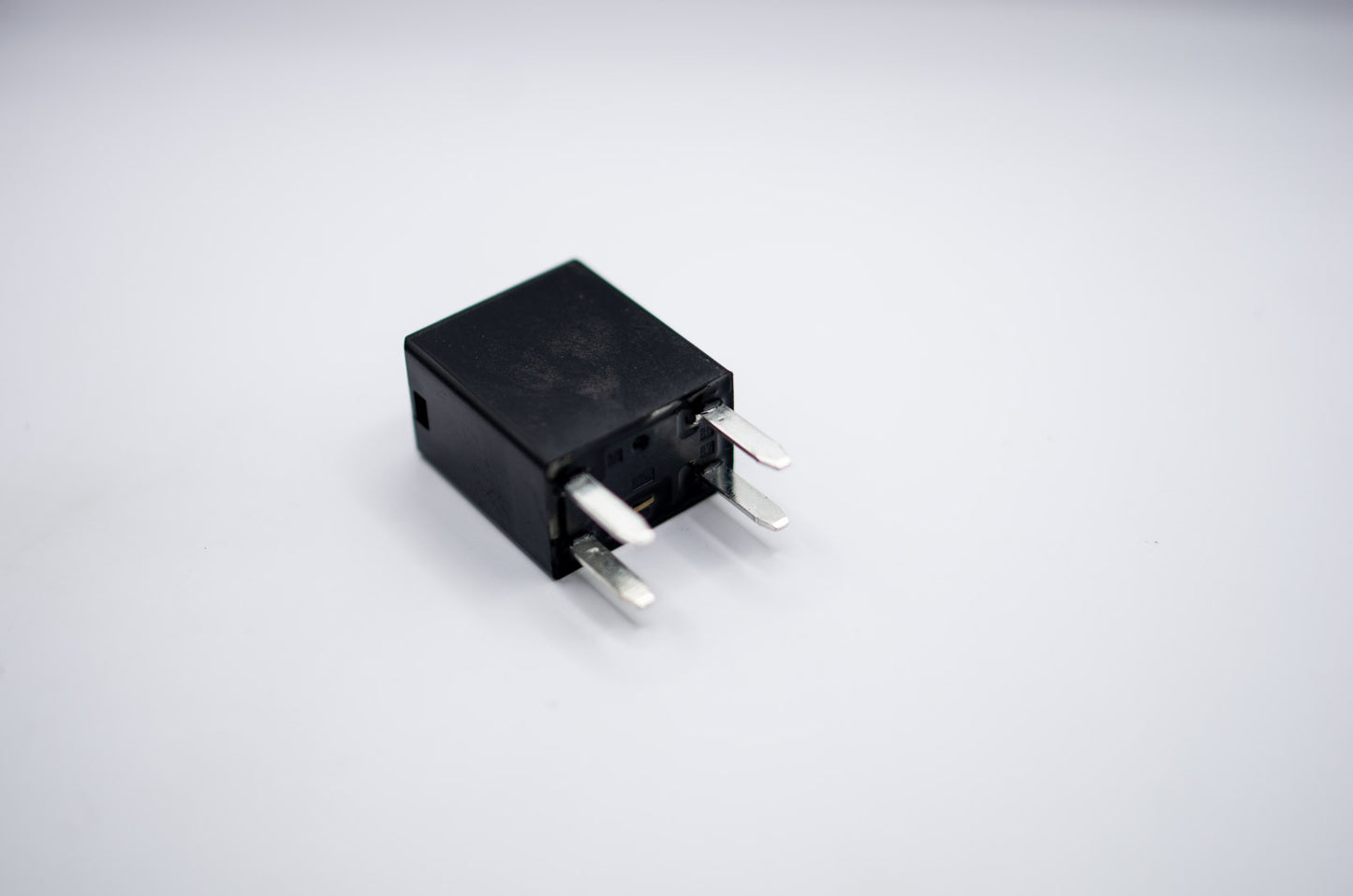

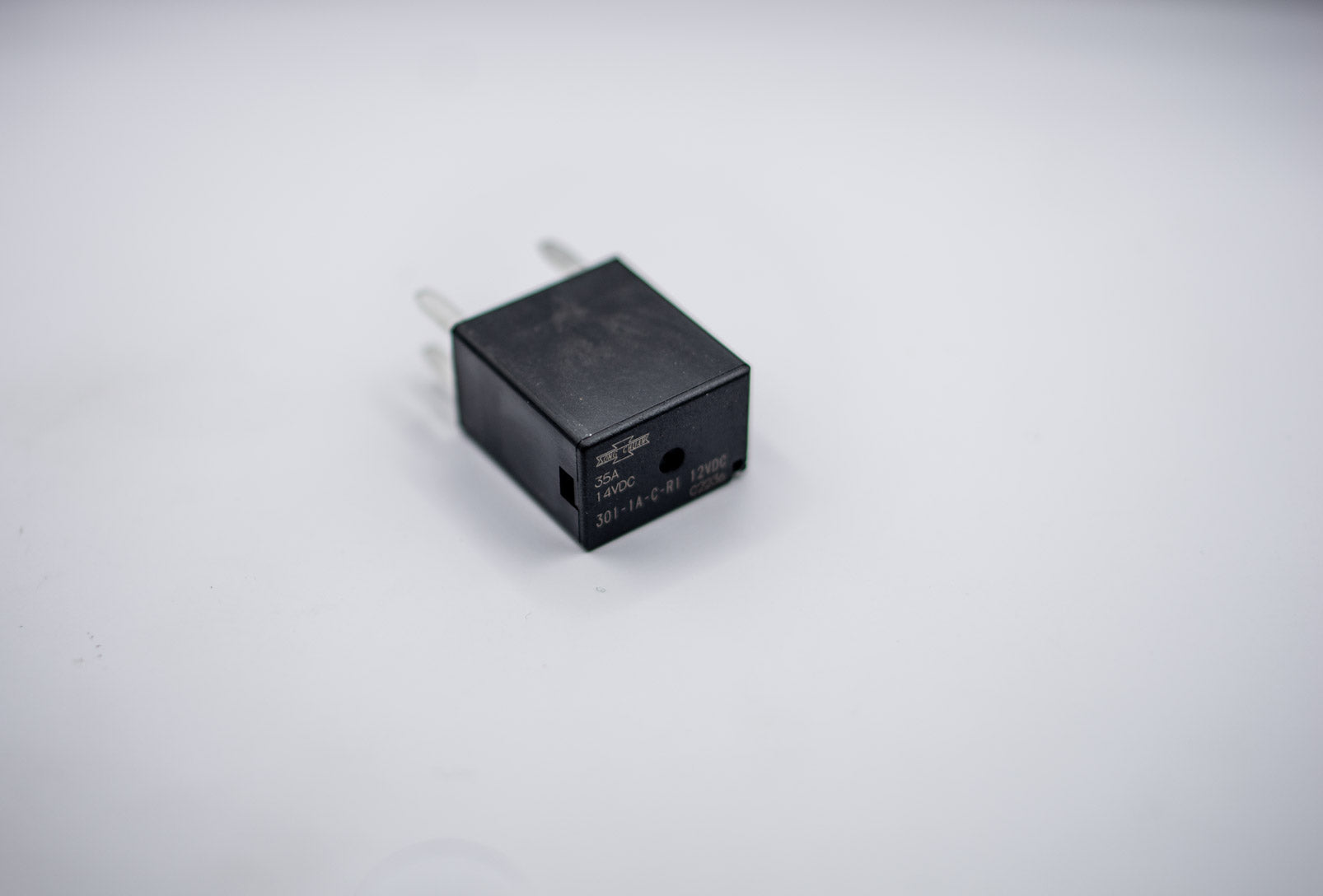

Micro 280 automotive relay.
Operating ambient temperature -40°C to 125°C.
ISO 280 Terminals
Contact Rating:
|
Resistive Load |
35A 14VDC |
| 15A 28VDC |
Coil Rating (DC):
|
Rated Voltage (V)
|
Rated Current (mA) | Coil Resistance (ohms) | Max continuous voltage | Pick up voltage (Max) | Drop out voltage (Min) | Power consumption at rated voltage | |||
| without resistor | with resistor | without resistor | with resistor | without resistor | with resistor | ||||
| 6 | 188 | 222 | 32 | 27 |
133% of rated voltage
|
60% of rated voltage
|
10% of rated voltage
|
approx. 1.2W
|
approx. 1.4W
|
| 12 | 98 | 115 | 123 | 104 | |||||
| 24 | 50 | 59 | 483 | 410 | |||||
|
 |
| Part No. | Voltage | Current Rating (A) | Contact Type | Terminals | Fig |
| PB1512RMC | 12 | 20 | N/O | 4 | 1 |
| PB1524RMC | 24 | 15 | N/O | 4 | 1 |
| PB2512RMC | 12 | 20 | C/O | 5 | 2 |
| PB2524RMC | 24 | 10 | C/O | 5 | 2 |
