Micro - 280 Series - Fuse and Relay holder Accessories

Micro - 280 Series - Fuse and Relay holder Accessories

$95.56 AUD
$95.56 AUD
Sale Sold out
Type

All items are sold in packs of 100.

These terminals and seals are to suit the "Micro - 280 Series - Fuse and Relay Holder Kits" only, and will not work with the "Mini Electrical Centres - Fuse and Relay Holder".

The terminals are the Junior Power Timer series, and can be used in other applications where this terminal is specified.

Type Part Number Blade Side Wire Size (mm²)
Cable O.D. Range (mm)

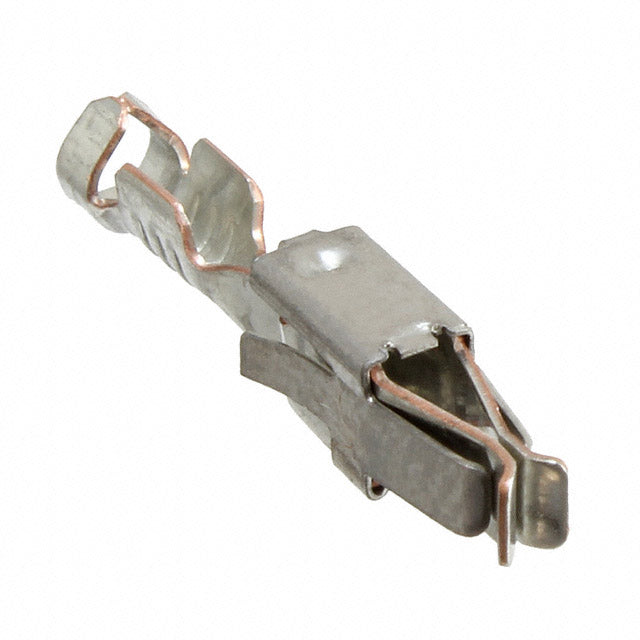

Terminal 927779-3 2.8mm 0.5-1.0 1.4-2.3

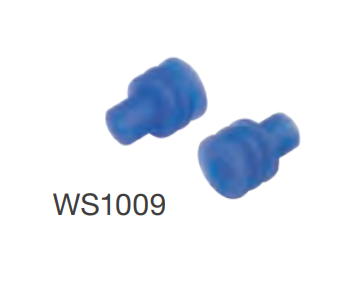

Wire Seal - Blue WS1009 1.2-1.7

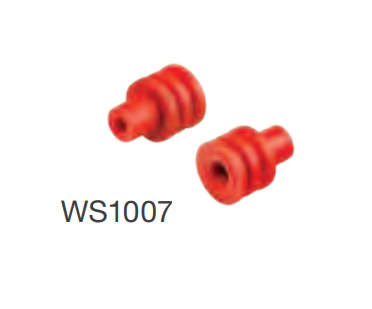

Wire Seal - Red WS1007 2.2-2.85

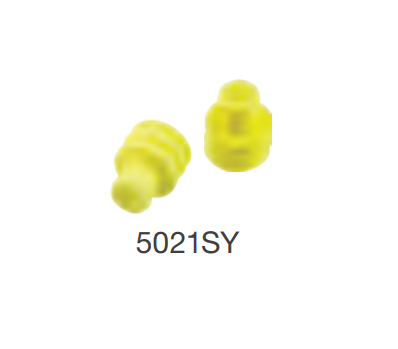

Wire Seal - Yellow
 5021SY 1.7-2.4

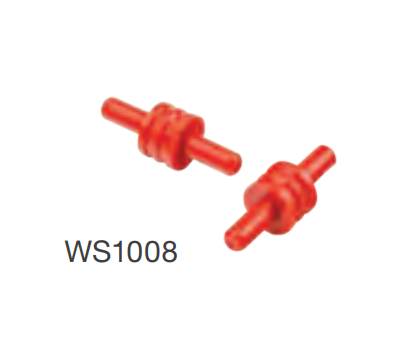

Cavity Plug WS1008 -
