Micro - 280 Series - Fuse and Relay Holder Kits

Available in three variations.

All variations have the following features:

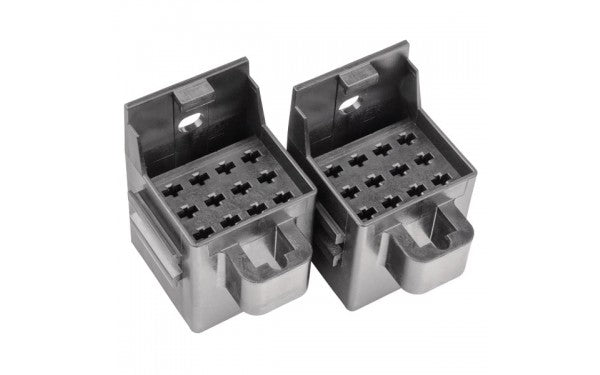

• Bases can be linked together using interconnecting guides.
• Kits supplied with all required components including contacts, seals and cavity plugs. (no relays or fuses included)
• Bases can be purchased separately

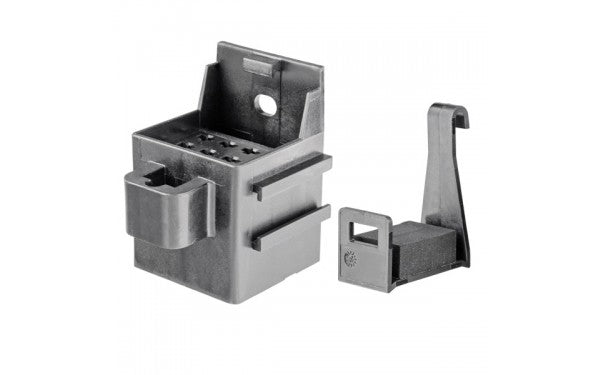

• Locking bracket can be easily released – no tools required.

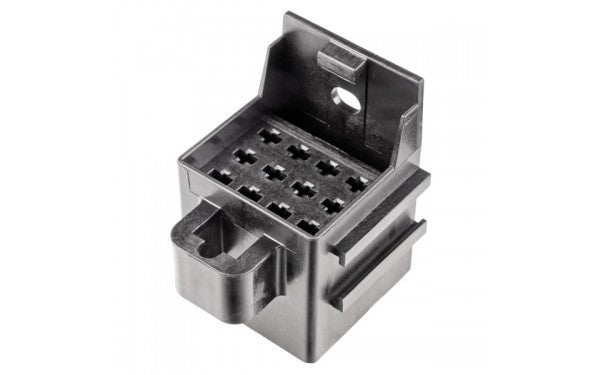

• 12 cavity mounting bases suiting 2.8mm blade size.

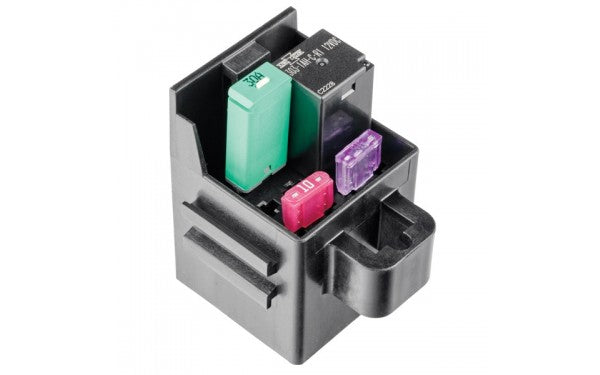

• Suitable for Mini (ATM) fuses & circuit breakers, 280 series micro relays, and Microplex CAN Controllers.
• Made in Europe.
• Housing: PA66 Nylon
• Operating Temp: Melting Point 260°C

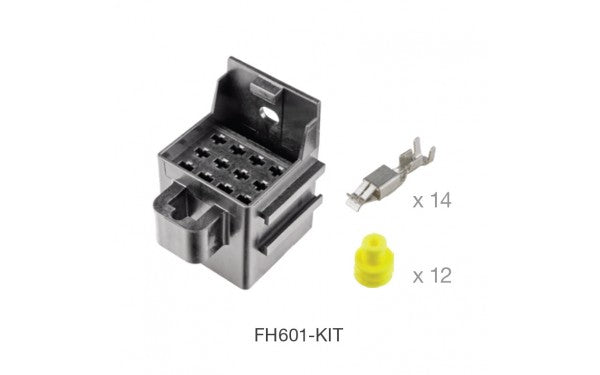

FH601 Kit

Kit Contents:

• 1x Mounting Base
• 14x Terminals (929939-3)
• 14x Wire Seals (281934-2)

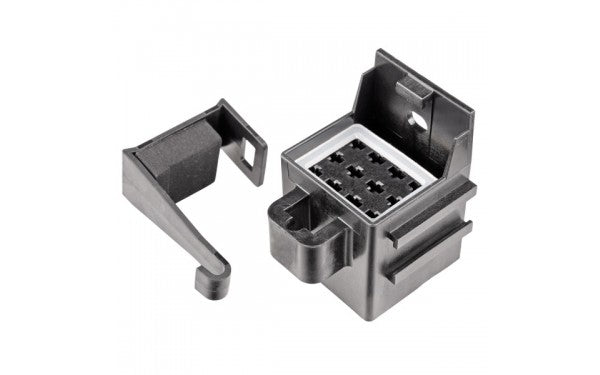

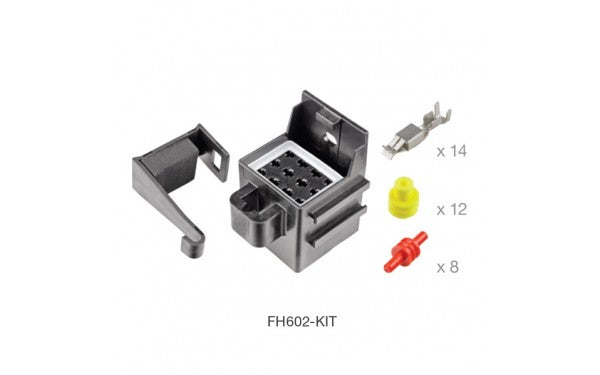

FH602 Kit

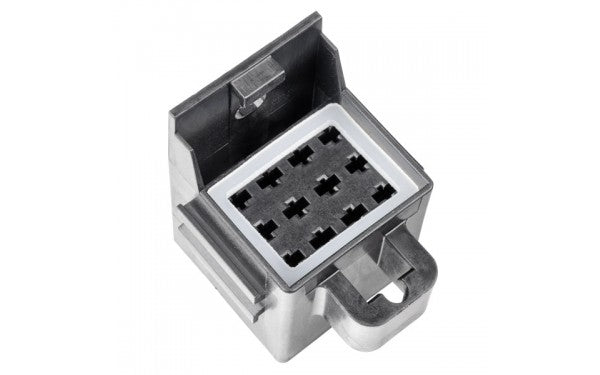

FH602 includes a waterproof seal and has an IP67 rating when properly assembled.

Kit Contents:

• 1x Mounting Base
• 1x Seal
• 1x Locking Bracket
• 14x Terminals (929939-3)
• 14x Wire Seals (281934-2)
• 8x Cavity Plug (WS1008)

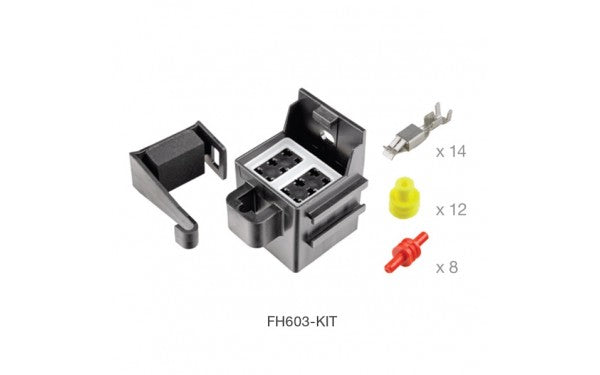

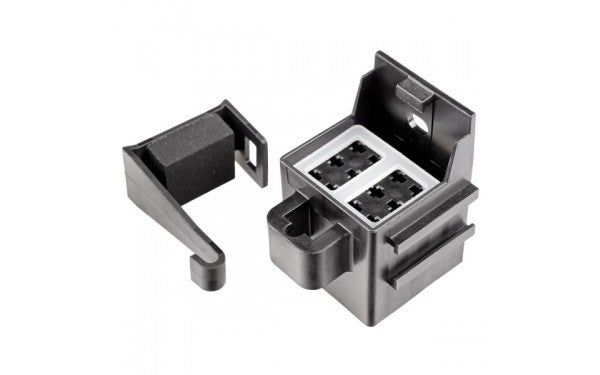

FH603 Kit

FH602 includes a waterproof seal and has an IP67 rating when properly assembled.

Kit Contents:

• 1x Mounting Base
• 1x Seal - Twin
• 1x Locking Bracket
• 14x Terminals (929939-3)
• 14x Wire Seals (281934-2)
• 8x Cavity Plug (WS1008)
