Mini Electrical Centres - Fuse and Relay Holder

This holder has 8 ISO280 cavities designed to accept up to;

• 4 mini blade fuses / circuit breakers.
• 1 ultra micro 280 relay & 2 mini blade fuses / circuit breakers.

Note that the low profile cover (FH08) will only fit over fuses

Max Current Rating: 120A
Operating Temperature: -40°C to 125°C

- Compact size.
- Easy mounting.
- Eliminates excess wiring.
- Clear cover for protection & easy visual inspection.
- Environmentally sealed - IP66
- Made in North America

Dimensions:

FH08	FH09

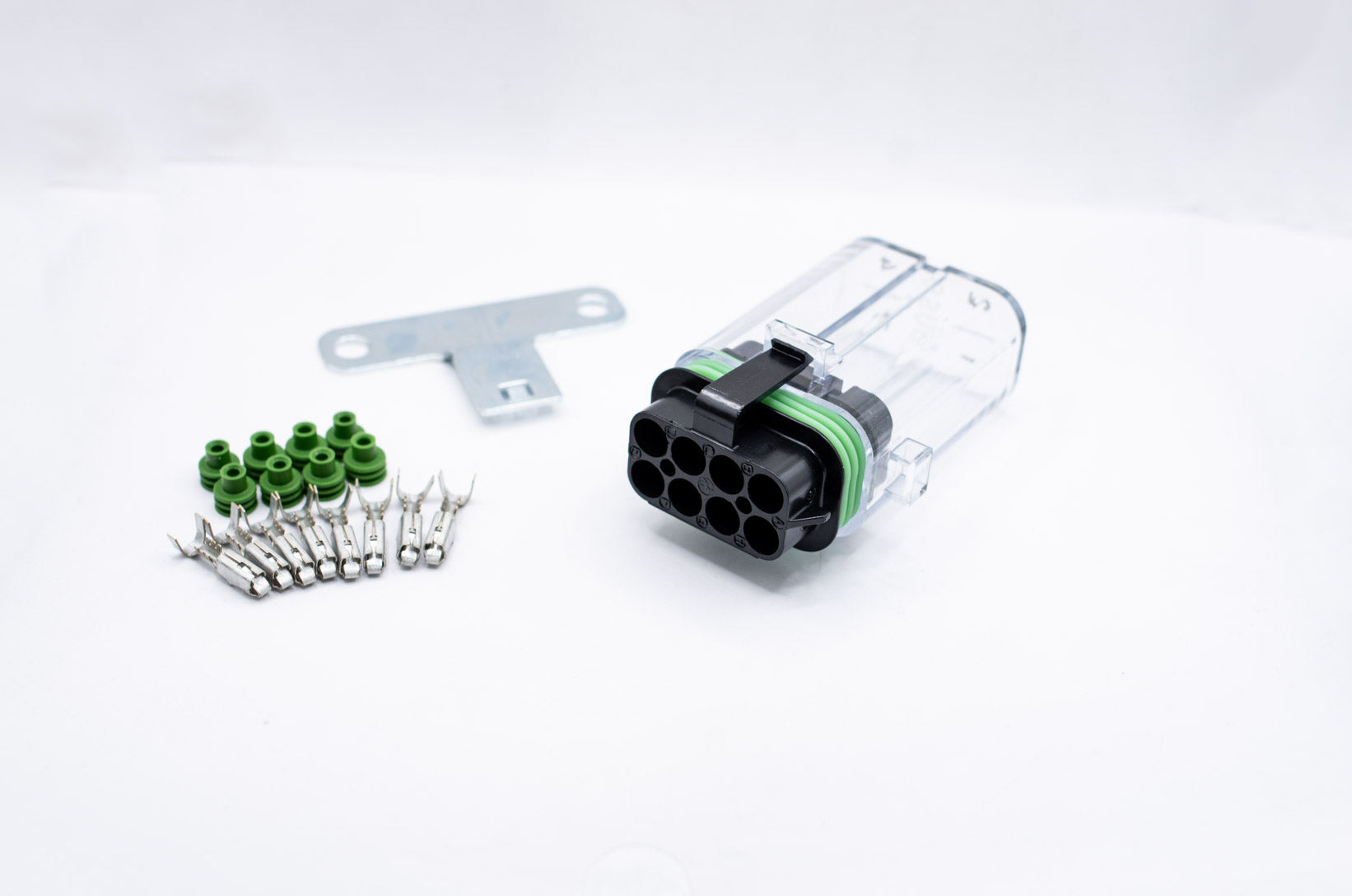

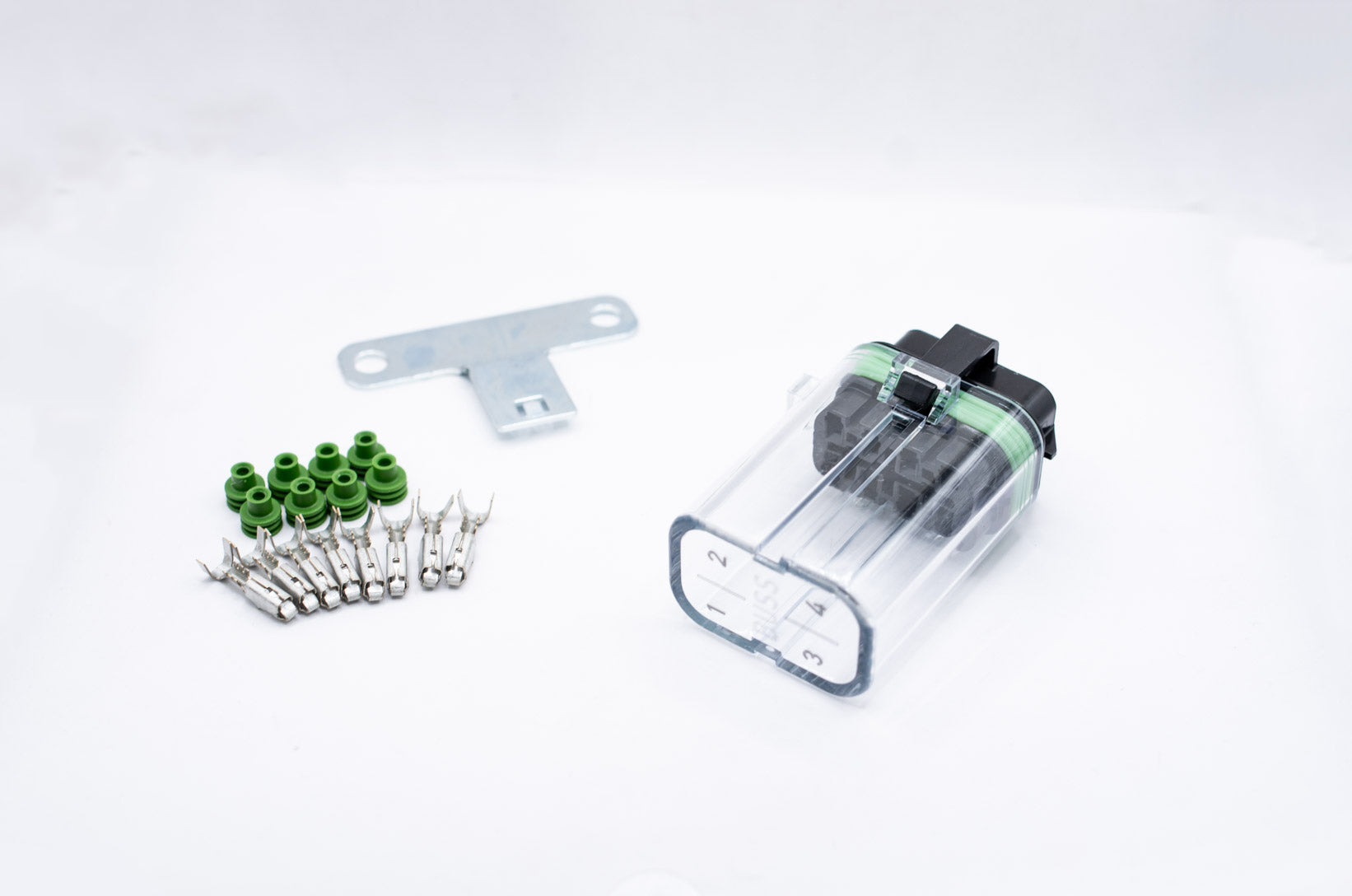

Includes:

• 1x 8 Way Holder Base
• 1x Holder Cover (high or low profile depending on variant selected)
• 1x Holder Mounting Bracket
• 8x Sockets
• 8x Wire Seals

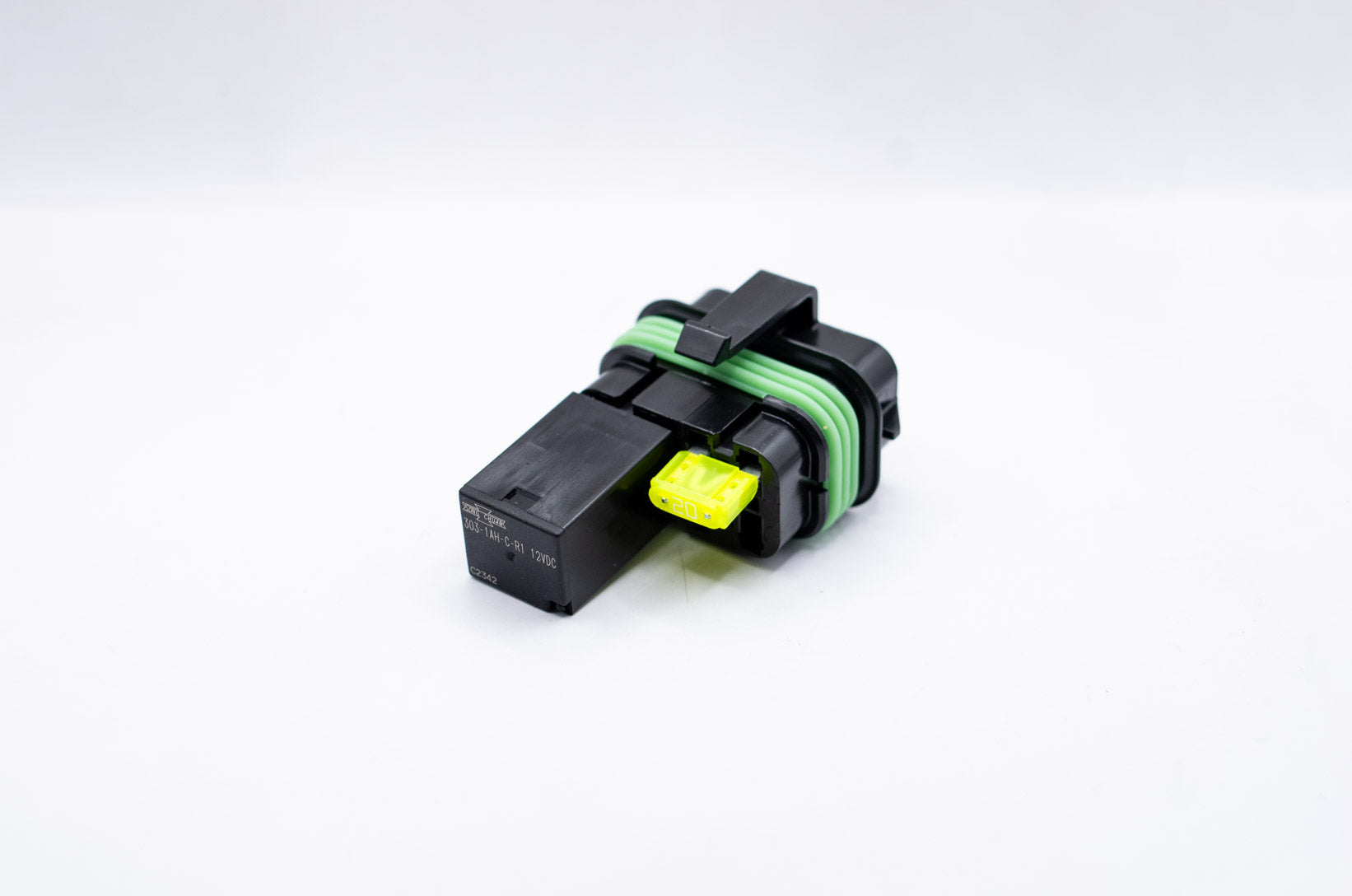

Pictured with a fuse and relay for demonstration purposes only. Fuses and relays are sold separately.
