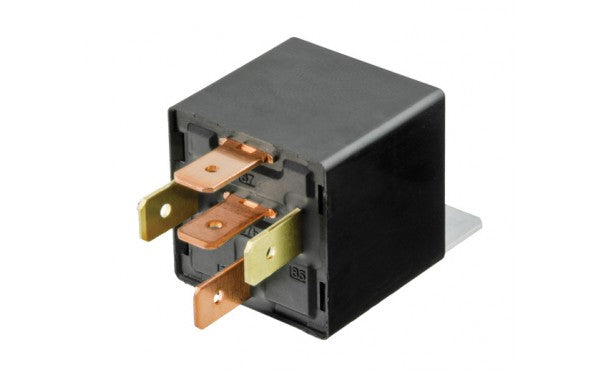

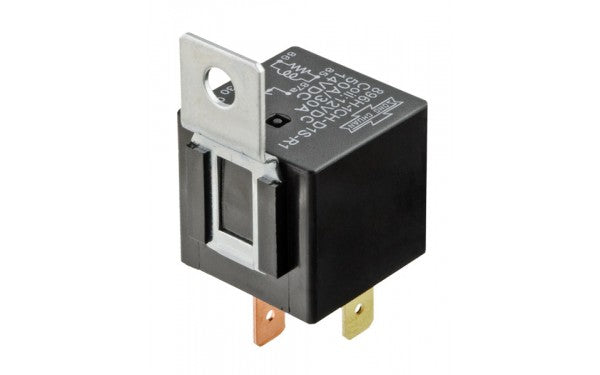

Mini - PB Series - Relays
Mini - PB Series - Relays
Regular price
$13.59 AUD
Regular price
Sale price
$13.59 AUD
Unit price
per
Couldn't load pickup availability
Features:
- All models resistor protected.
- Full range of accessories available.
- Normally open & Change over models.
- Broad operating temperature.
- Removeable mounting bracket.
Specifications:
- Protection: Resistor
- Switch Contacts: Silver Alloy
- Body: Polymer
- IP Rating: IP54
- Operating Temp: -40°C to 125°C
| Part Number | Voltage | Current Rating A | Contact Type | Terminals |
Mounting Bracket
|
Fig
|
| PB1412R | 12 | 30 | N/O | 5 | Removable | 1 |
| PB1424R | 24 | 20 | N/O | 5 | Removable | 1 |
| PB2512R | 12 | 50/30 | C/O | 5 | Removable | 2 |
| PB2524R | 24 | 20/15 | C/O | 5 | Removable | 2 |
