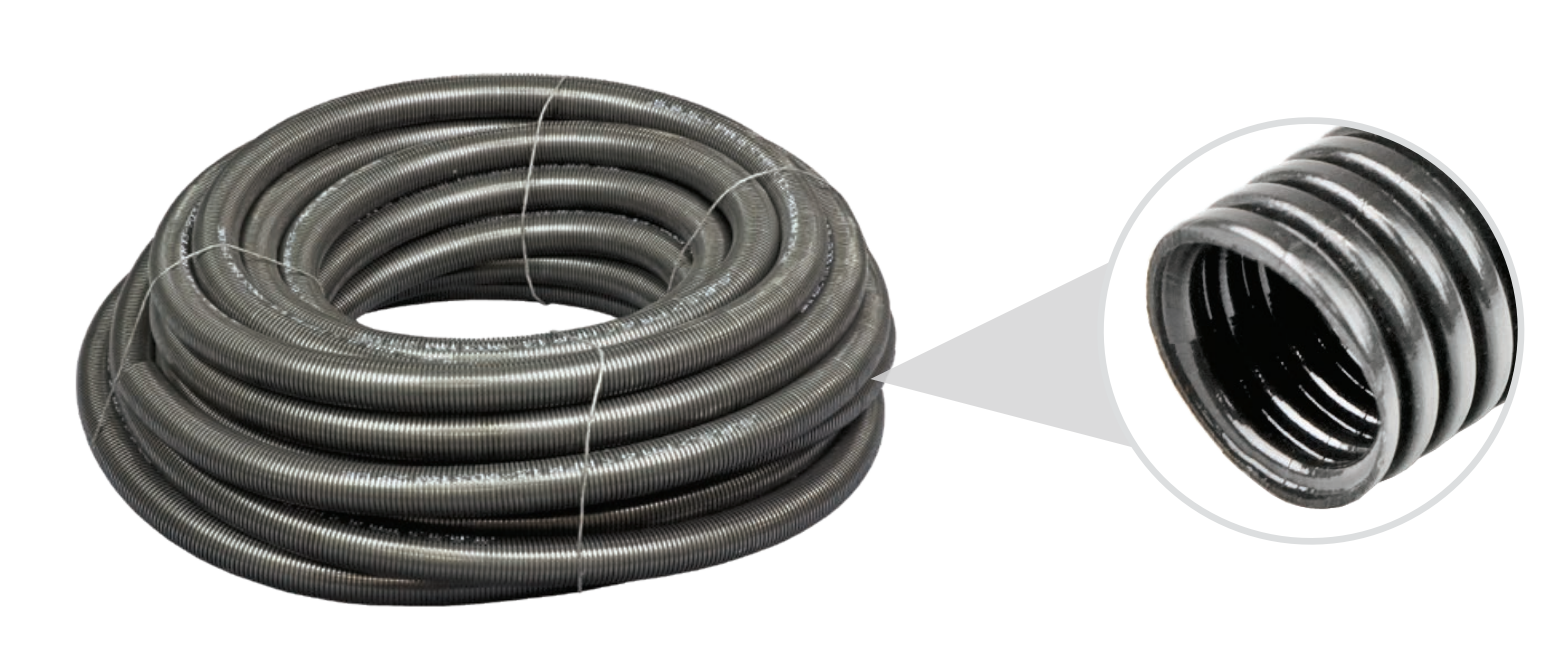

Polyflex® PA6 Corrugated Conduit (Nylon)
Polyflex® PA6 Corrugated Conduit (Nylon)
Regular price
$162.77 AUD
Regular price
Sale price
$162.77 AUD
Unit price
per
Couldn't load pickup availability
• Highly durable & flexible.
• Self-extinguishing, flame retardant and halogen-free.
• High chemical, oil & solvent resistance.
• Wide range of sizes.
• Compatible with entire range of Schlemmer fittings and accessories.
• Made in Europe.
Specifications
- Material: Polyamide 6 (PA6) (Nylon)
-
Operating Temp: Continuous -25°C to 80°C
Short Term 150°C - Ingress Protection: IP68
- Approvals: TUV, NFR, L.C.O.E., UL, ADR & GGVS
-
Burning Behaviour: FMVSS 302, < 100 mm/min.
HB according to UL94 - UV Resistance: DIN EN ISO 8580
NW - Schlemmer Sizing
NC - UK Sizing
| Inside Diameter (A mm) | NW-A | NC-A | B (mm) | C (mm) | Roll Length |
|
5 |
4.5 | 6 | 7.1 | 5.0 | 100 |
| 6 | 6.0 | 7 | 9.2 | 6.0 | 100 |
| 6.7 | 7.5 | 8 | 10.0 | 6.7 | 50 |
| 8.4 | 8.5 | 10 | 11.7 | 8.4 | 50 |
|
9.9 |
10.0 | 12 | 13.0 | 9.9 | 50 |
| 12.2 | 12.0 | 12 | 15.7 | 12.2 | 50 |
| 12.7 | 13.0 | 16 | 15.8 | 12.7 | 50 |
| 16.6 | 17.0 | 20 | 21.2 | 16.6 | 50 |
| 21.3 | 22.2 | 25 | 25.4 | 21.3 | 50 |
| 29 | 29.0 | 32 | 34.5 | 29.0 | 25 |
| 36 | 37.0 | 40 | 42.4 | 36.0 | 25 |
