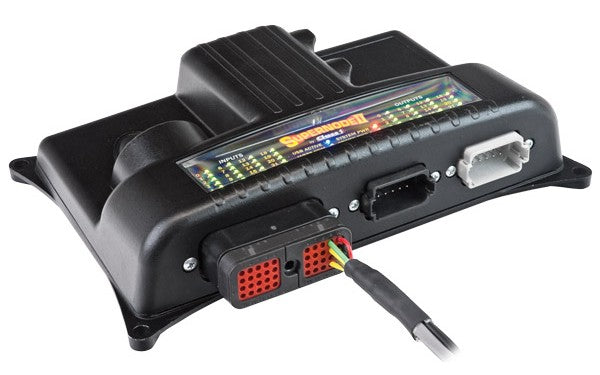

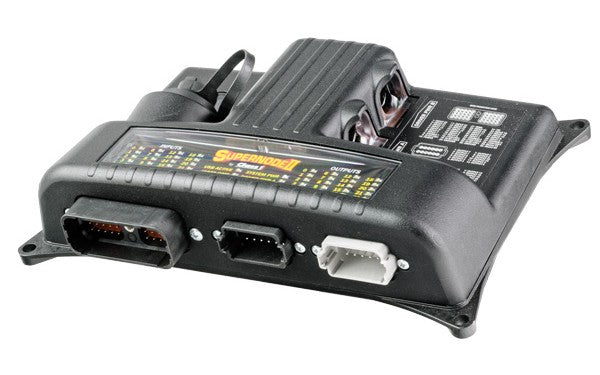

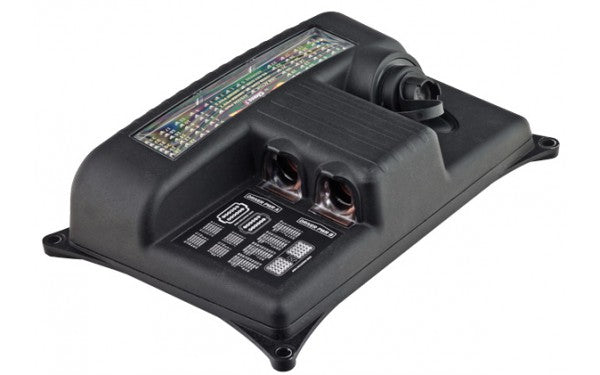

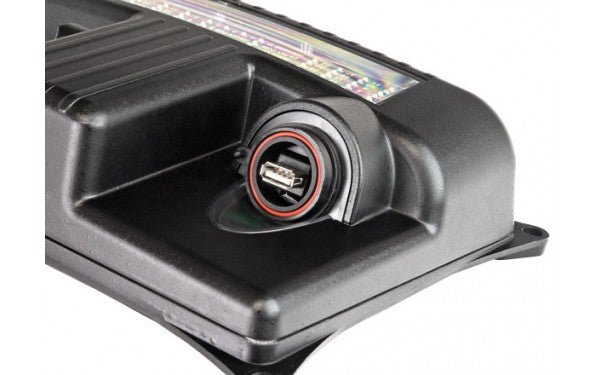

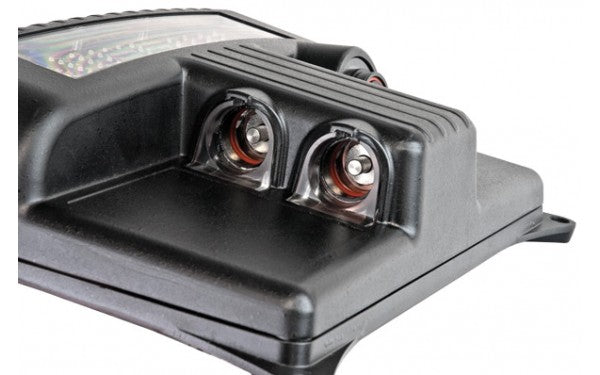

The Supernode II consolidates the functions of several Es-Key modules - USM, Data Logger, Seatbelt, Vehicle Data Recorder (VDR), Climate Control, Digital Input/Output Module & Power Distribution Module. This reduces node count and simplifies addressing. Making it well suited for applications where a centralised node location is required.

• SAE J1939 CAN engine message reception and Es-Key network controller.
• Digital circuit breakers on all positive outputs.
• Output ‘open load’ detection.

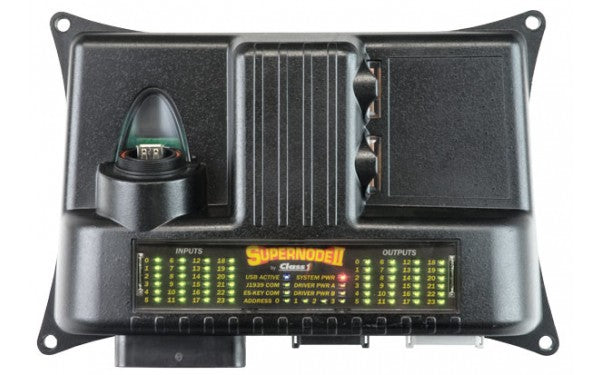

• Diagnostic LED indicators.
• Optional modem available upon request.
• Environmentally sealed - IP67.
• Multi-voltage.

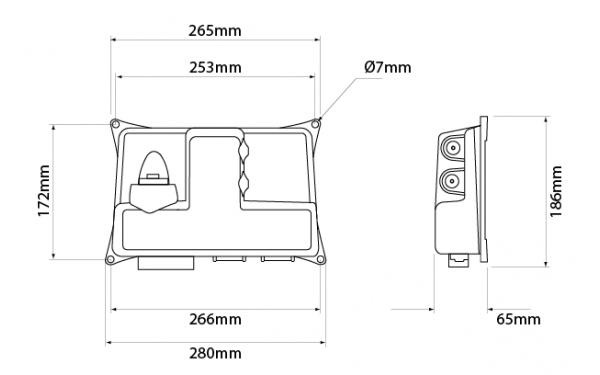

Specifications:

Voltage: 9-32V

Body: Die-cast

Current Draw*:
500mA @ 13.8V
350mA @ 27.6V

Inputs: 24 Polarity selectable

Outputs:
18 Positive,13A Rating
6 Negative, 2A Rating

IP Rating:IP67

CAN:SAE J1939

Operating Temp:-40°C to 85°C

Note: Optional integrated modem available

*Current draw does not include draw from outputs

Connection Kits are available separately
