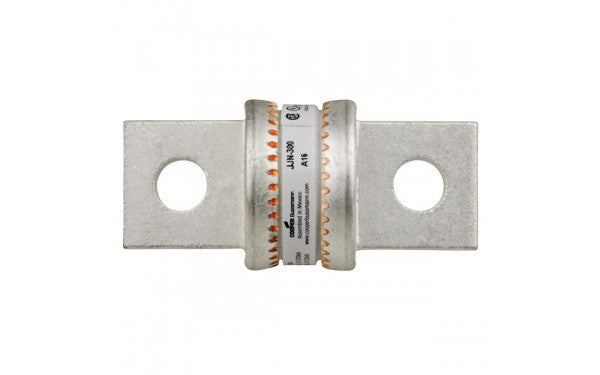

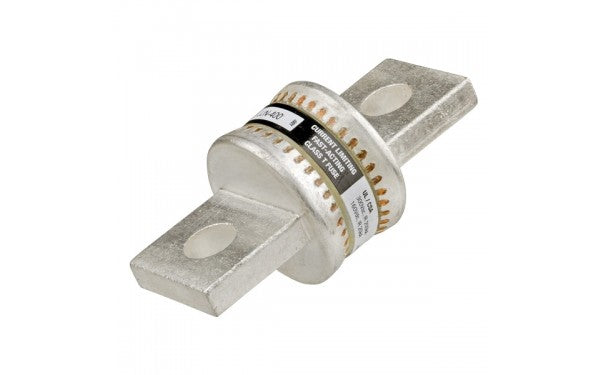

T-Class Fuses

Sold individually

Class-T fuses provide the ultimate protection for high power circuits, and where extremely fast fuse blow characteristics are required.

Modern batteries such as AGM and lithium technologies are capable of very high short-circuit currents which may be beyond the interrupt rating of standard circuit breakers and other fuse types.

Class-T fuses are also recommended for use with high power inverters and inverter/chargers.

Features:

• Fast-acting T-Class fuses help prevent equipment damage caused by short-circuit events.
• Exceptional current limitation.
• 200kA interrupting rating complies with NEC Section 110.9 for today's large capacity systems.
• Ideal for critical industrial or commercial applications that have specific current limitation requirements.


Specifications:

• Type: T-Class
• Current Rating: 300A, 350A, 400A
• Mount: M10 @ 47mm centres
• Terminals: Tin-plated brass
• Approvals: CE, CSA, UL, RoHS
