Brighton Auto Electric

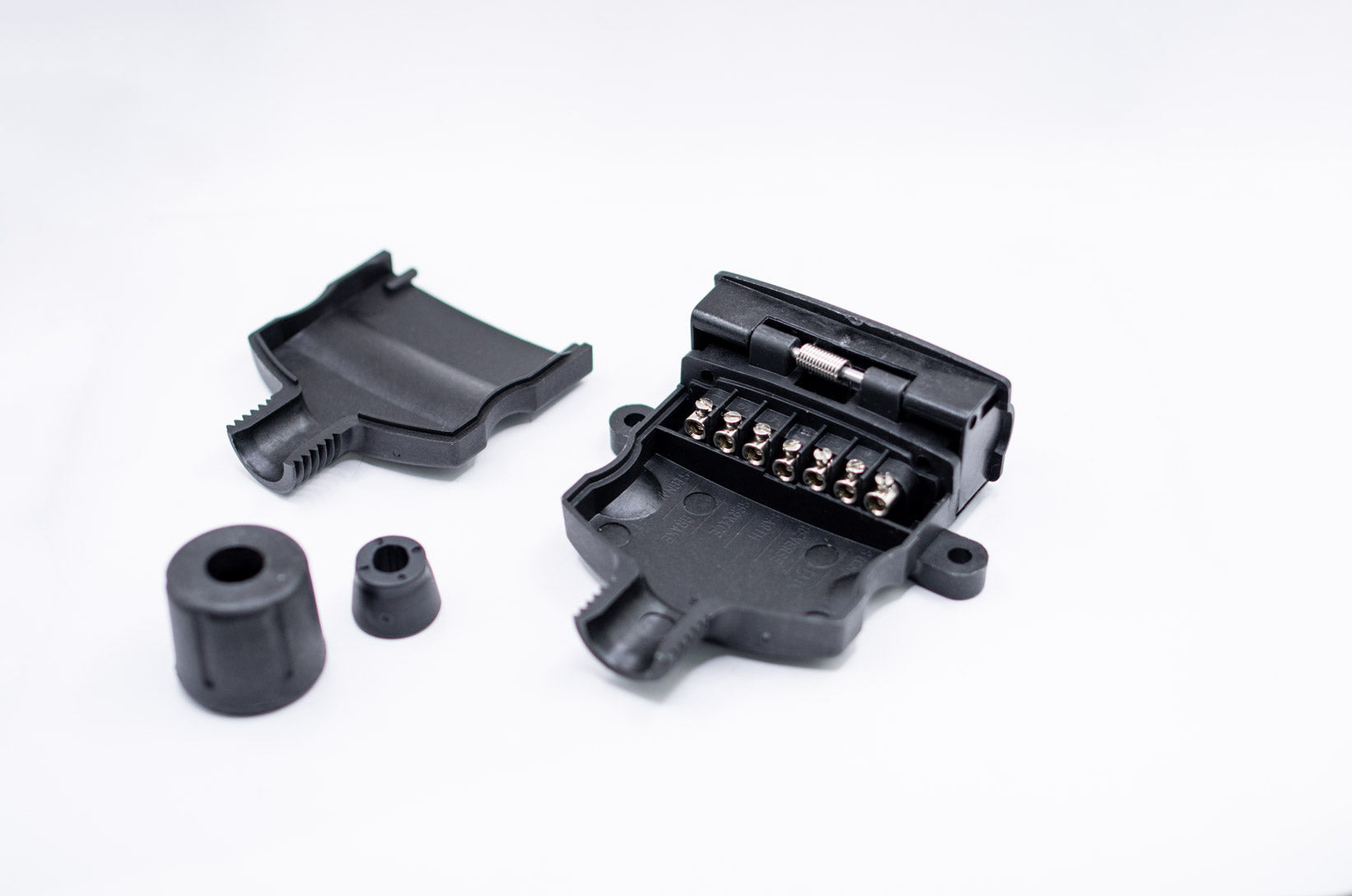

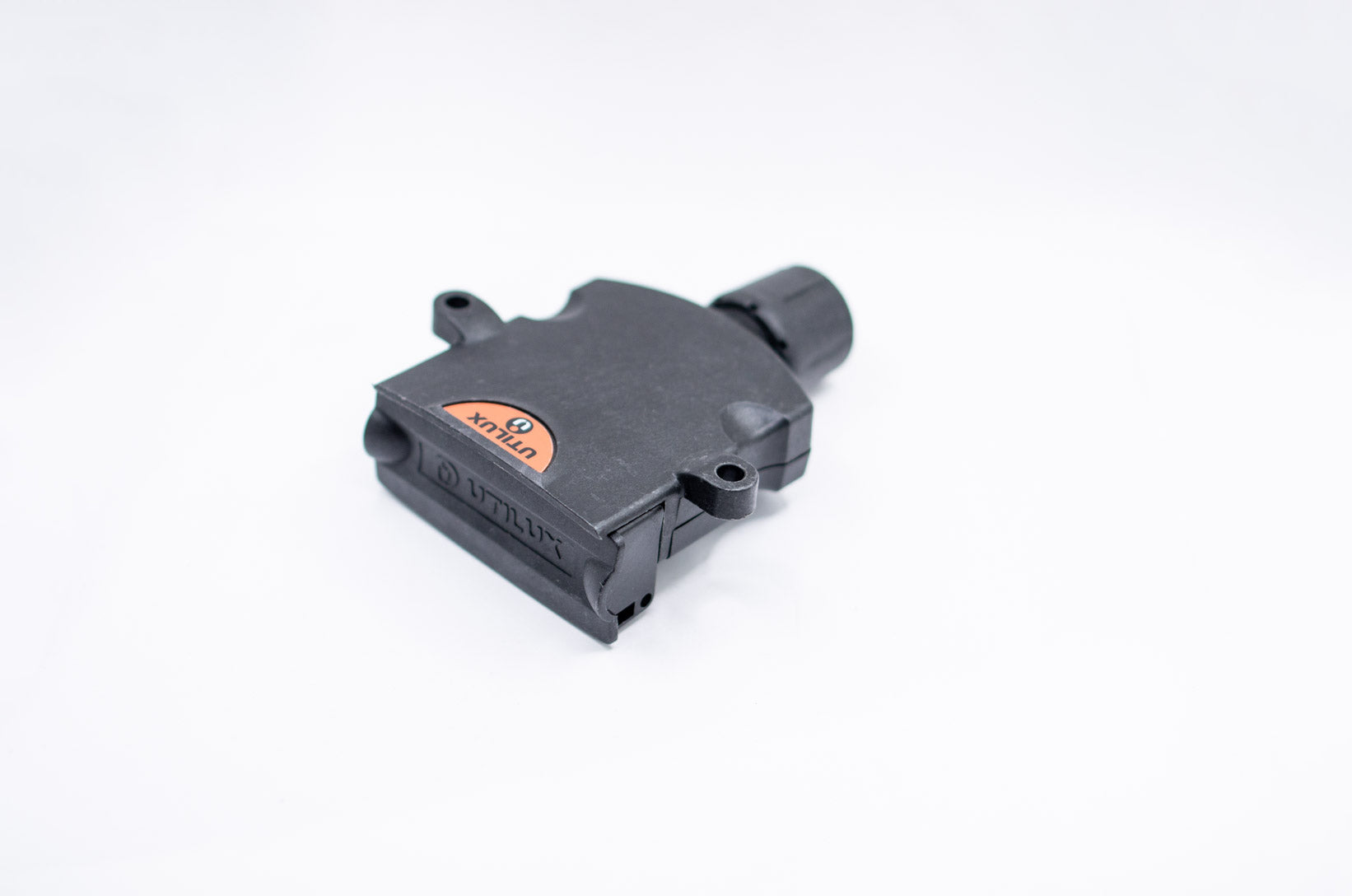

Trailer Connector 7 Pin Flat Socket
Trailer Connector 7 Pin Flat Socket
Regular price
$22.77 AUD
Regular price
Sale price
$22.77 AUD
Unit price
/
per
Couldn't load pickup availability
GENUINE UTILUX - H40905
Impact and UV Resistant Thermoplastic Construction
Industry Standard 7 Pin Flat Socket
20 Amp Total Rating @ 12 Volt
ADR Approved
Wiring Pinout:
| Pin | Function | Wire Colour |
| 1 | Left Indicator | Yellow |
| 2 | Reverse Signal | Black |
| 3 | Earth Return | White |
| 4 | Right Indicator | Green |
| 5 | Service Brakes/Aux | Blue |
| 6 | Stop Lamps | Red |
| 7 | Park Lamps | Brown |
