Brighton Auto Electric

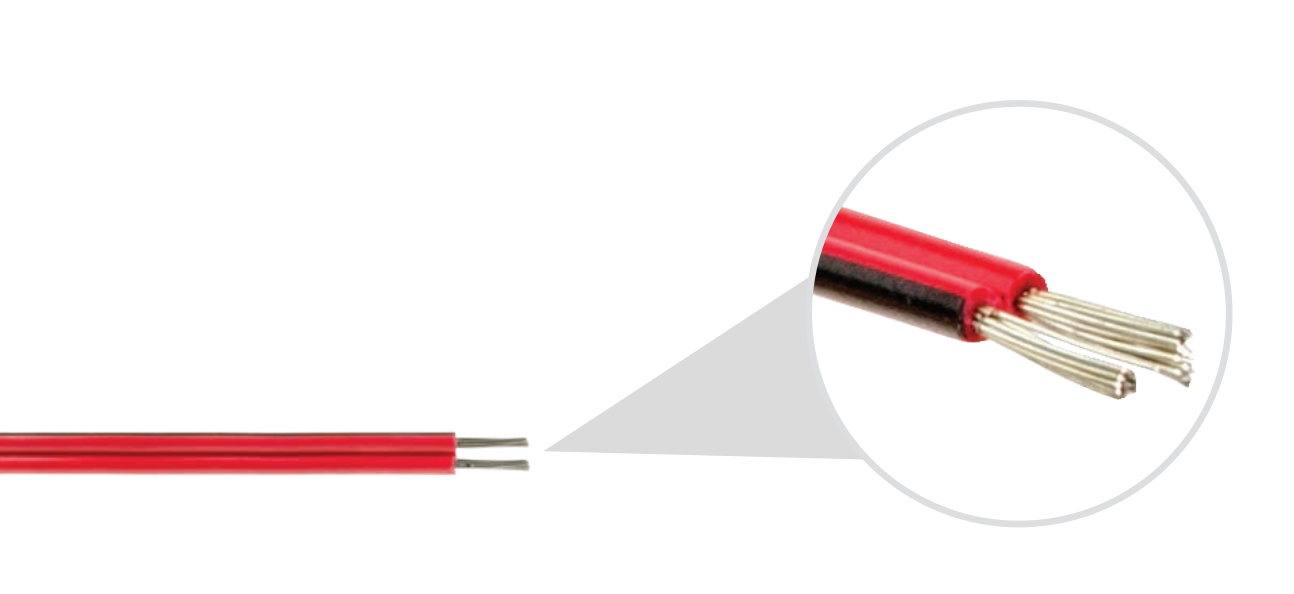

Twin Core Figure 8 Cable - Tinned
Twin Core Figure 8 Cable - Tinned
Regular price
$136.39 AUD
Regular price
Sale price
$136.39 AUD
Unit price
/
per
Couldn't load pickup availability
| Industry Equivalent mm* | Nominal Area (mm²) | Nominal O.D. (mm) | Conductor | Roll Length |
| 3 | 1.13 | 2.45 x 52 | 16/0.30 | 50m |
| 4 | 1.84 | 2.80 x 5.9 | 26/0.30 | 100m |
Industry term for identifying cable size not conductor size (Nominal Area).
Sold on 50m Rolls
- Protective tin coating on copper provides:
– Resistance to corrosion.
– Barrier between materials.
– Improved solderability & contact properties. - High Flexibility.
- Lead free PVC insulation.
- RoHS Compliant.
- V90HT (V105).
- Available in a variety of colours.
- Made in Australia.
Approvals: RoHS
Max. Operating Temperature: 105°C
