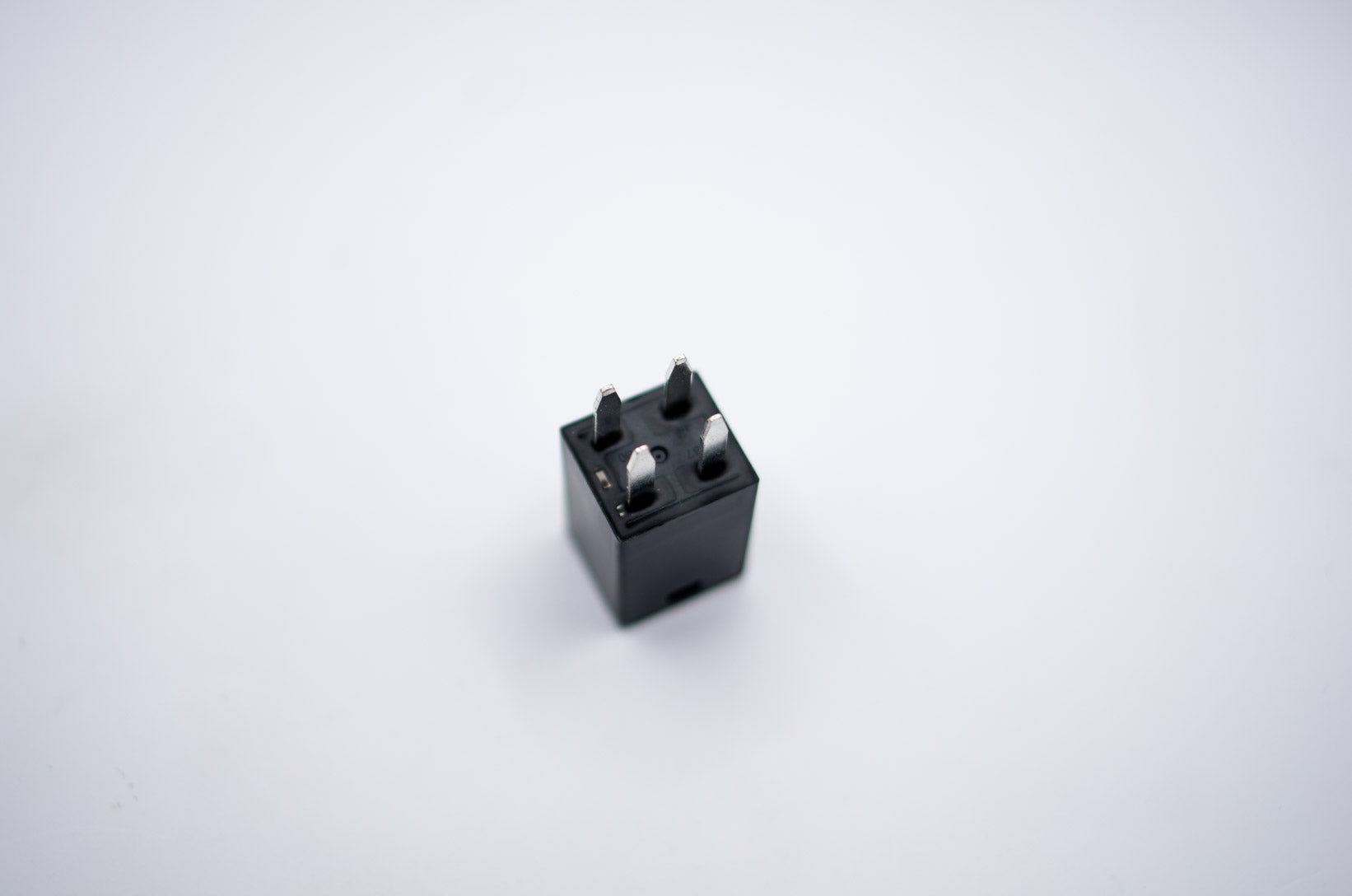

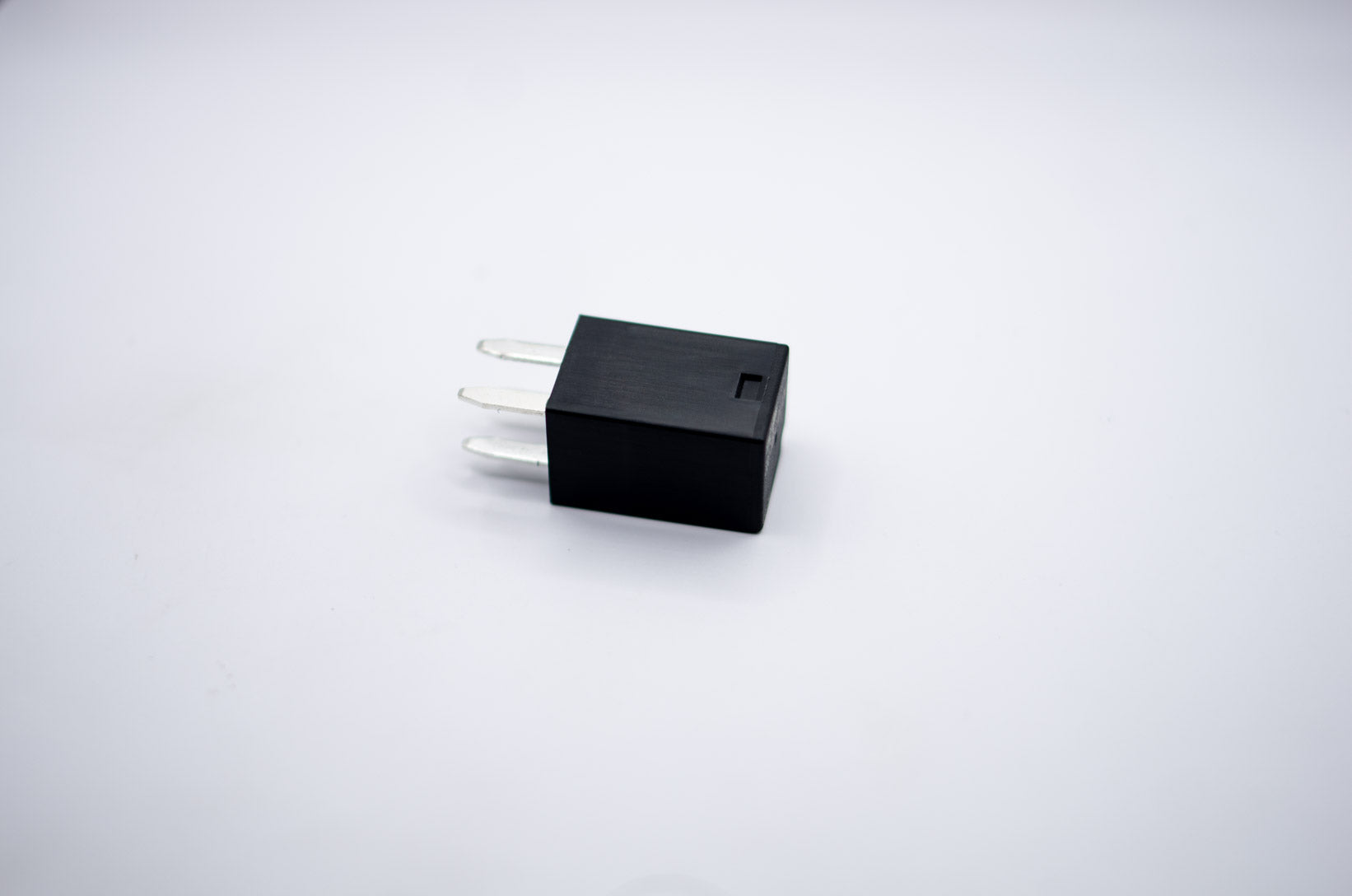

Ultra Micro ISO Automotive relay.
High Current Rating up to 20A.
High Temperature withstand up to 125°C ambient
ISO 280 Terminals
Normally Open
Single Pole Single Throw (SPST): The relay switches power to a single circuit.
Resistor Protected: Terminals 85 and 86 can be wired in either polarity. One terminal is positive and the other is negative.
Wiring Diagram, Bottom View:
Contact Rating:
|
Resistive |
20A 14VDC, 10A 28VDC, 100K ops. |
| Motor | 16A 14VDC Inrush 80A ; ON 2s / OFF 5s, -30~+80°C, 300K ops. |
| Lamp | 16A 14VDC Inrush 80A ; ON 3s / OFF 3s, -30~+100°C, 100K ops. |
Coil Rating (DC):
| Rated Voltage (V) | Rated Current (mA) | Coil Resistance (ohms) | Max continuous voltage | Pick up voltage (Max) | Drop out voltage (Min) |
Power consumption at rated voltage
|
| 12 | 80 | 150 |
133% of rated voltage
|
60% of rated voltage
|
8% of rated voltage
|
approx. 0.96W
|
| 24 | 40 | 600 |
