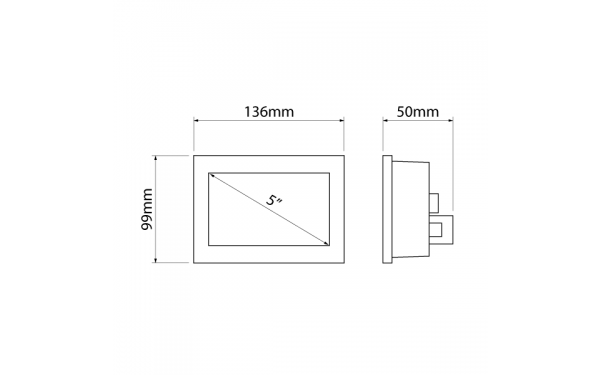

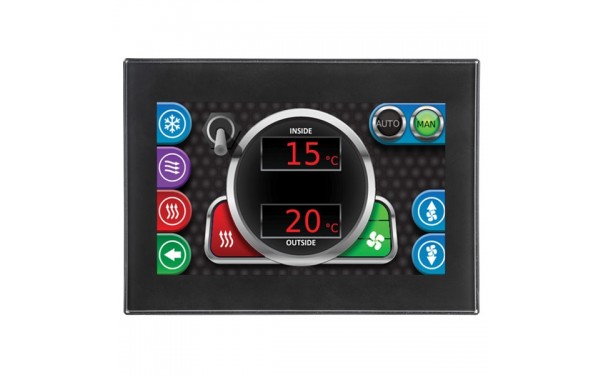

Ultraview Touch Series 5" Display UV500

• Projected capacitive touch screen on all models – can be used while wearing gloves.
• J1939 CAN based information display incorporating programmable switching.
• Infinitely customisable.
• Bonded LCD screen viewable in direct sunlight and whilst wearing polarised lenses.
• Reverse polarity and EMF protected.
• Horizontal or vertical screen orientation.
• Environmentally sealed – IP67.
• Multi-voltage.
• Made in North America.

Specifications:

Screen Size: 5"

Resolution: 800 x 480

Voltage: 6-36V

Current Draw: 400mA @ 13.8V

CAN:
SAE J1939
NMEA 2000

Inputs: 1

Camera Inputs: 2

Video Signal: NTSC / PAL

Output: 1

Vibration: 7.86G rms 5.2000 Hz, 3 axis

Shock: +/- 50G, 3 axis

Housing Material: Polycarbonate

IP Rating: IP67

Operating Temp: -40­­°C to 85°C
