Weatherproof Mini Relays
Weatherproof Mini Relays
Regular price
$17.71 AUD
Regular price
Sale price
$17.71 AUD
Unit price
per
Couldn't load pickup availability

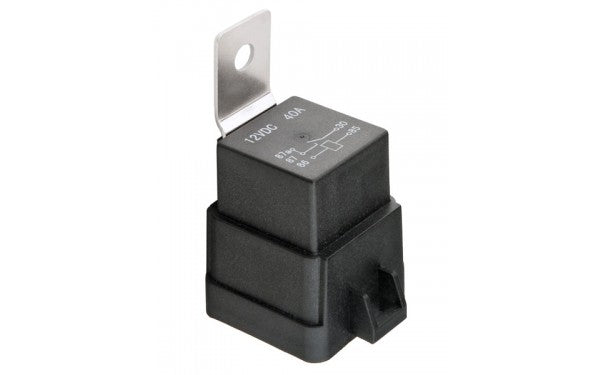

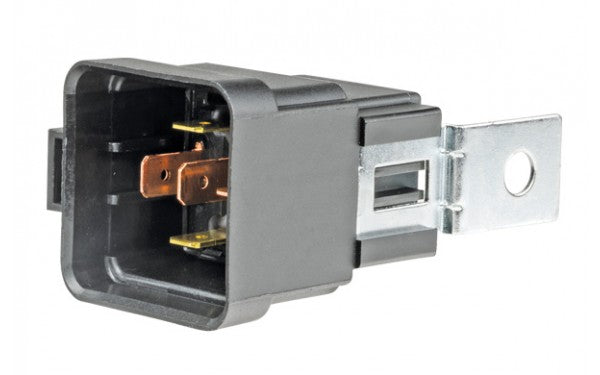

These weatherproof relays uses a resistor protected normally open 5 pin relay, and is suitable for a wide range of automotive applications.
This weatherproof relay seals to IP67.
-40°C to 125°C operating temperature.
This protection rating is achieved by utilising a shrouded relay housing with an accompanying sealed connector.
Available as an individual relay, or as a kit.
| Voltage | Current Rating (A) | Contact Type | Terminals | Fig | |
| P1512RWP | 12 | 2x 30 | N/O | 5 | 1 |
| P1524RWP | 24 | 2x 10 | N/O | 5 | 1 |
| P2512RWP | 12 | 50/30 | C/O | 5 | 2 |
| P2524RWP | 24 | 20/15 | C/O | 5 | 2 |

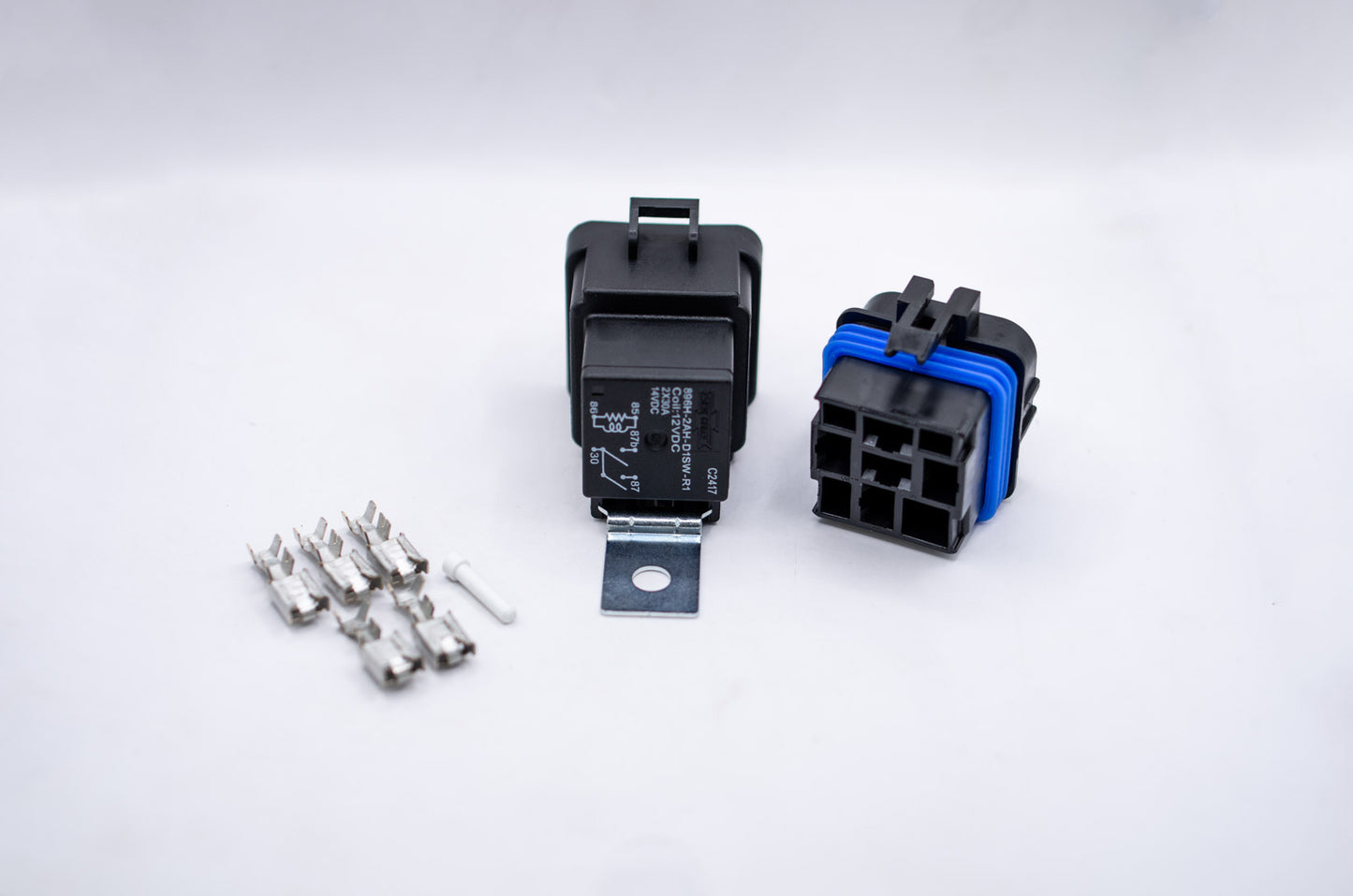

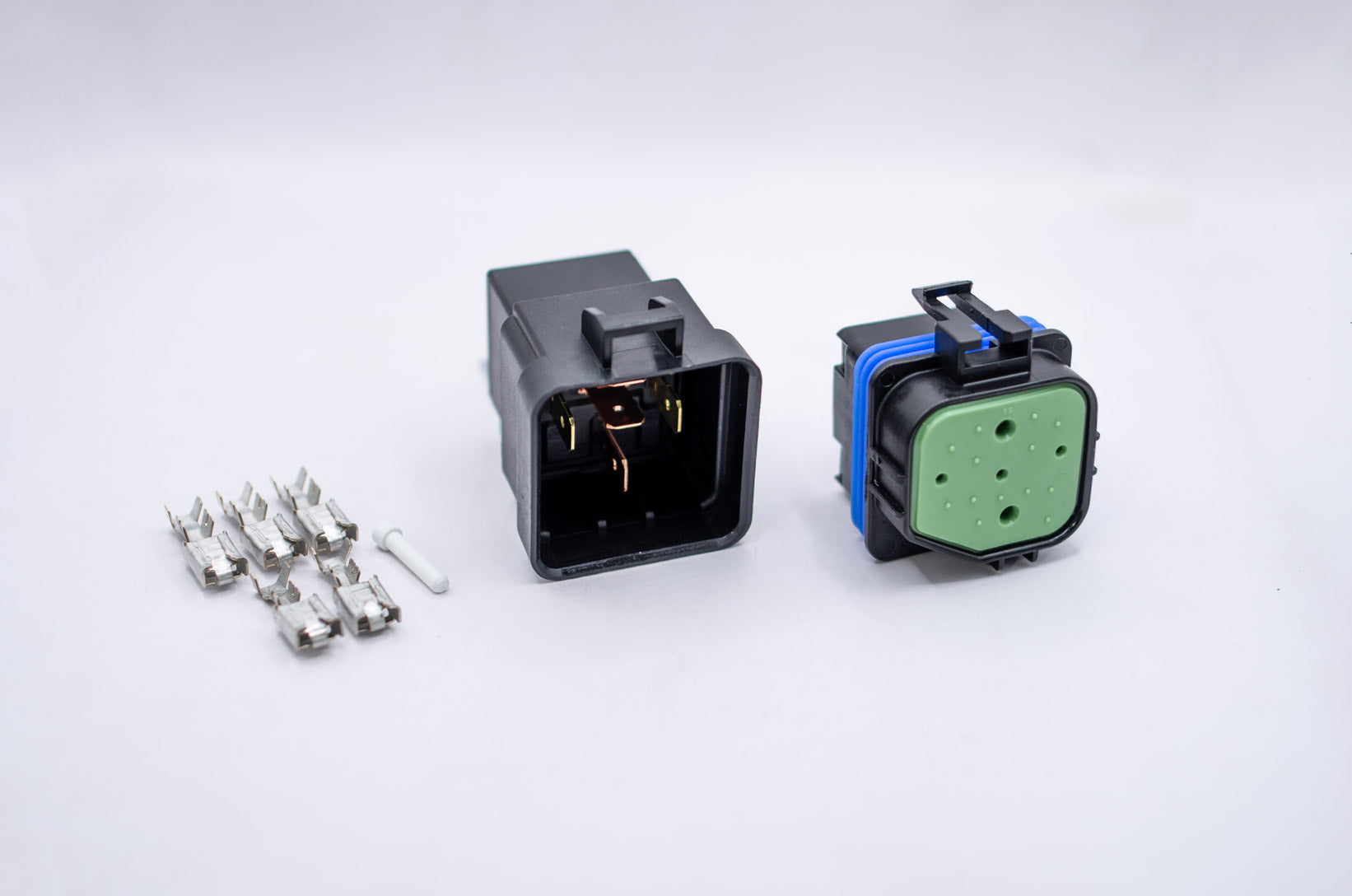

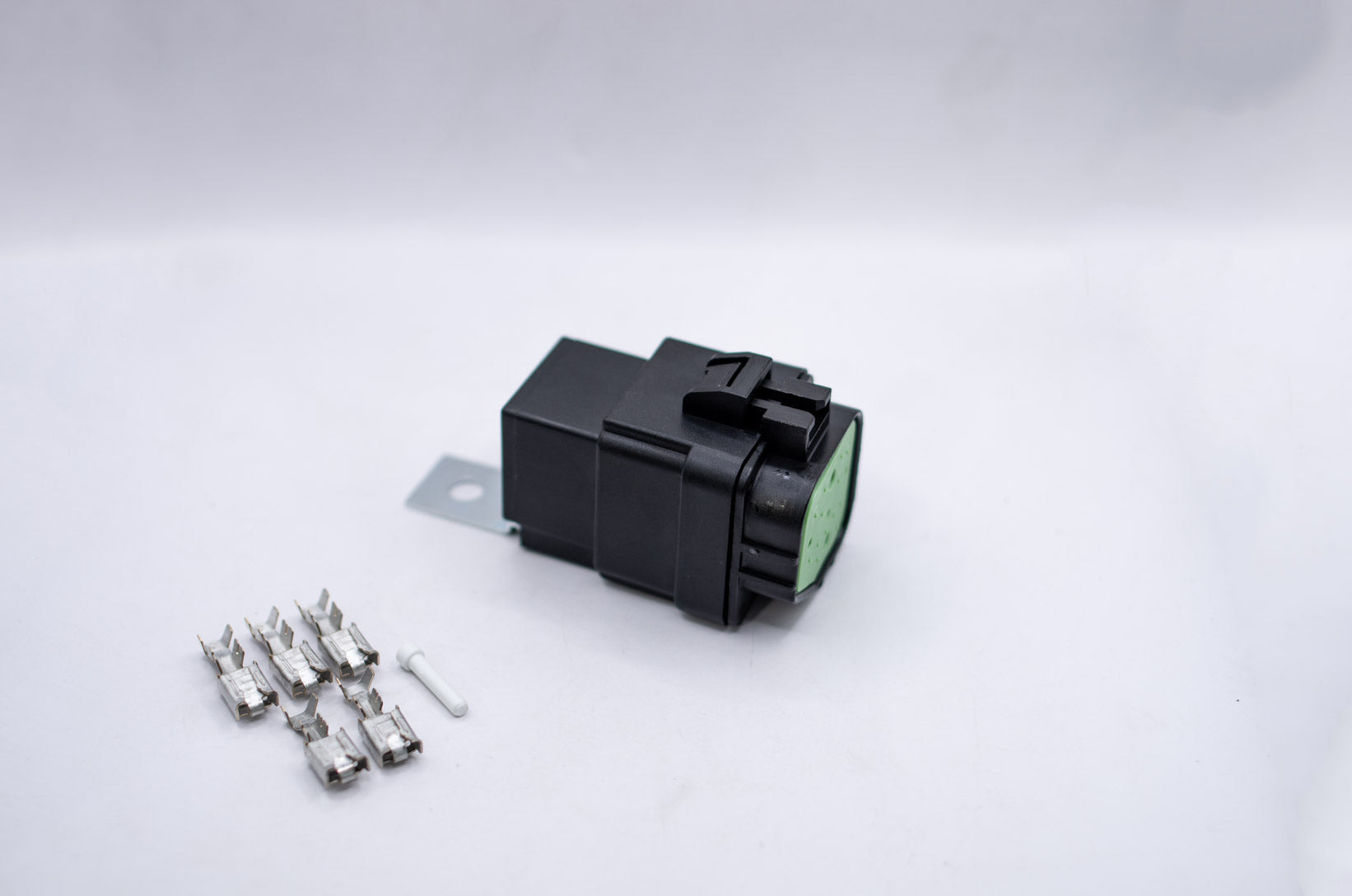

Kits contains:
- 1 x Mini Weatherproof Relay
- 1 x Base Connector
- 1 x Sealing Blank
- 2 x Terminals 1-2mm2
- 3 x Terminals 2-3mm2
